Name: 500L/H 0.5ton Complete Beer Foaming Wine Carbonated Drink Mixing Line Plant with Co2 Mixer
Brand: Zhangjiagang City Bottling Machinery Co., Ltd.
Availability: InStock

Home Products Carbonated drink filling

500L/H 0.5ton Complete Beer Foaming Wine Carbonated Drink Mixing Line Plant with Co2 Mixer

Product Details:

Place of Origin:	Jiangsu
Brand Name:	BOTTLING

Contact Now

Detailed Product Description

Automatic Grade:	Automatic	Voltage:	Customized
Machinery Capacity:	500L-10000LPH	Key Machines:	Heat Exchanger, Mixer, Carbonator, Cooling System
Product Type:	Sparkling Water, Spirits, Wine, Carbonated Drink, Soft Drink	Weight (KG):	1000
Product Name:	Carbonated Drink Processing Plant	Application:	Carbonated Soft Drink Making
Capacity:	500LPH-10000LPH	Material:	SUS304, SUS316
Syrup Melting Tank:	Electric Heating With Insulation	Drink Connection Pipes:	DN38
CIP:	Provided	Control System:	PLC
Brand:	BOTTLING

Products Description

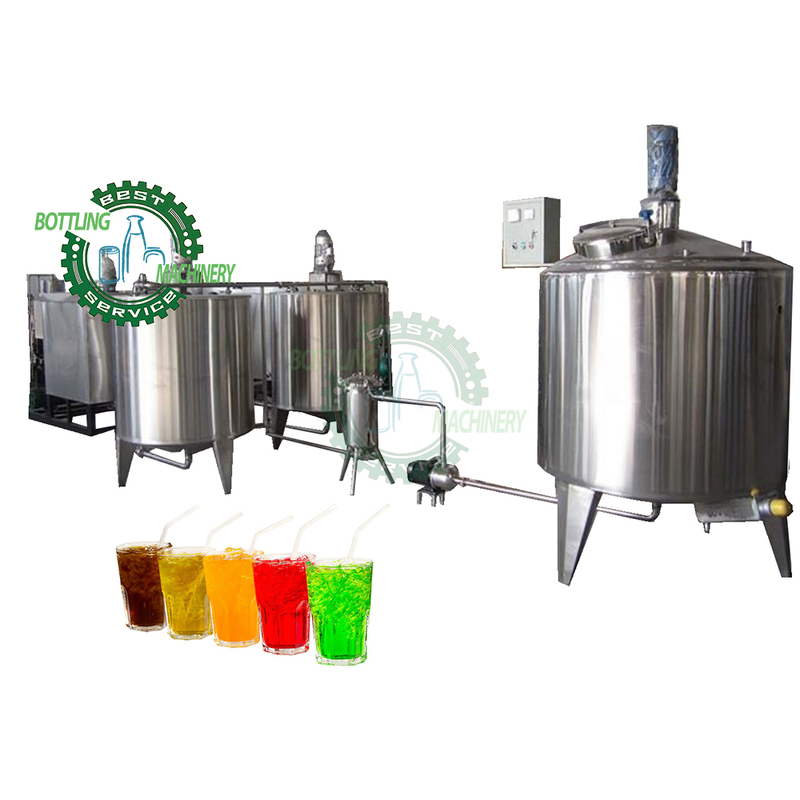

Carbonated/soft drink processing line(500LPH-10000LPH)

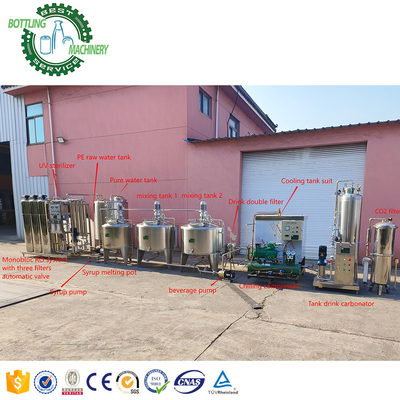

The whole carbonated/soft drink processing plant mainly include water treatment equipment, syrup belting pot, mixing system, Drink double filter, CO2 storage cylinder, CO2 filter, Cooling machine(refrigeration), carbonator(CO2 mixer), CIP

This carbonated/soft drink processing plant is mainly used for the preparation of gas-containing beverages. The main tank body is made of stainless steel 304, which meets the sanitary requirements. The structure is compact and the operation is convenient. Mainly composed of sugar pot, blending tank, double filter, beverage mixer, chiller, CIP cleaning system. Sugar-melting pot: also known as sugar-melting pot, sugar-melting tank, suitable for melting and disinfecting milk, syrup, fruit juice, food and other substances, heating, cooking and keeping warm. Mixing tank: It has the advantages of energy saving, corrosion resistance, strong production capacity, convenient cleaning, simple structure, etc. It is mainly used for mixing uniformity. Metering pump: used for precise blending of materials to ensure the uniformity of the blended flavors. Duplex filter: The filter bag leak detection rate is small, it can accurately ensure the filtration accuracy, and can quickly replace the filter bag, basically no material consumption for filtration, which reduces the operating cost. Beverage CO2 Mixer(carbonator): It is carefully designed and manufactured to increase the precise ratio of water, syrup and carbon dioxide. Cooling system(water chiller): Compression and refrigeration by Freon compressor unit, using refrigerant to make cold drinking water through the water tank evaporator. CIP cleaning system: The CIP cleaning system can effectively clean the production equipment such as tanks, containers and pipelines on site. The entire cleaning process runs in closed production equipment, tanks, containers and pipelines, thereby greatly reducing secondary pollution chance.

The complete 2000LPH carbonated drink mixing plant for reference:
1.1	Syrup melting pot	600KG/h	∮900*1700	1set
1.2	Syrup Filter	500Kg	∮320*800	1set
1.3	Drink mixing tank	1T/h	￠1100*2300	2sets
1.4	Drink double filter	3000Lph	∮320*800	1set

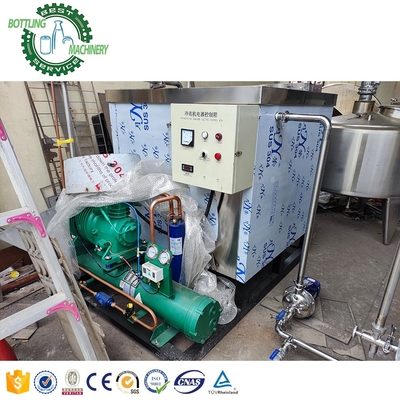

1.5	Air cooling Water chiller	20.2c	195012501600	1set
1.5.1	Buffer tank	270L	/	1set
1.6	CO2 filter	8m3/h	∮500*1400	1set
1.7	Double tank Carbonator with plate exchange	QHS-2000-2	140012001900	1set
1.8	Heat resistant pump/ beverage pump	/	/	2sets
1.9	Drink Connection pipes	DN38	/	1suit
1.10	Semi auto CIP	500-3*3	340016002300	1set

Syrup mixing, drinks cooling and CO2 mixing system: Carbonated beverages are mainly composed of water, syrup, and carbon dioxide. The syrup is made through the sugar pot and the mixing tank. After filtration, it is pumped into the syrup tank in the carbonated drink mixer. At the same time, the sterilized finished water is also pumped into the beverage mixer. The water tank is vacuum degassed to facilitate the mixing of carbon dioxide. Through the proportioning system on the beverage mixer, the water and syrup are mixed in proportion to achieve the desired taste, and our mixer incorporates carbon dioxide jet technology, The sandy taste of the beverage is equivalent to Coca-Cola, and the mixed materials are cooled by a plate heat exchanger, where the other end of the plate heat exchanger is mainly connected with a water chiller (cold water is provided, with antifreeze added, and the water outlet temperature is -3℃ -8°C adjustable) connection, we will select the chiller based on the user’s local climatic conditions. Through this heat exchange method, the material can be cooled to 0°C～3°C and fed into the beverage mixer. The carbon dioxide mixing tank can dissolve carbon dioxide into the material under the control of proper pressure to make carbonated beverages with ideal gas lock capacity.

CIP: Separate alkali, acid tank, hot water tank; Heating pipes used for cleaning liquid heating by steam connection or hot water boiling recycling; Centrifugal pump to discharge cleaning liquid to the machines which need to be washed; Feedback pump can be added for cleaning liquid recycling; It is for easy equipment s cleaning, divided into 5 steps of cleaning:A, Pre-Hot Water cleaning B, Alkali cleaning C, Post-Hot Water cleaning D, Acid cleaning E, Post-Hot Water cleaning

All the machines for carbonated drink processing plant:

syrup belting tank

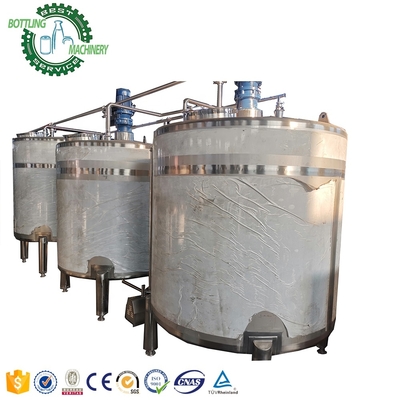

Beverage mixing tank

Drink double Filter

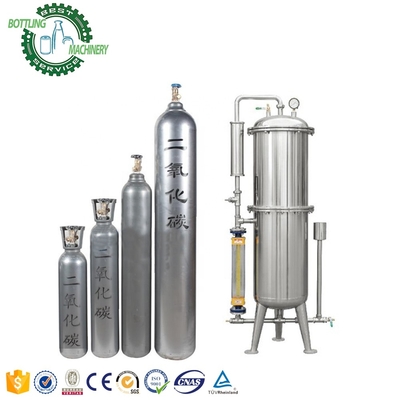

CO2 storage cylinder

CO2 filter

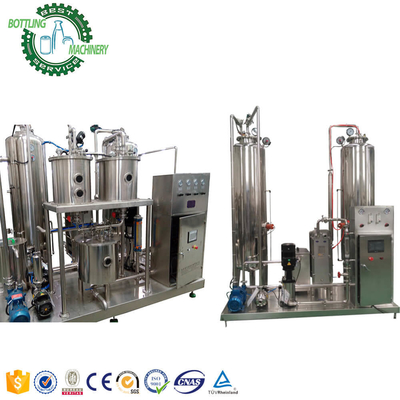

Carbonator(CO2 mixer)
