Name: 2000l Double Jacket Hot and Cold Mixing tank with Pump
Brand: Zhangjiagang City Bottling Machinery Co., Ltd.
Availability: InStock

Home Products Carbonated drink filling

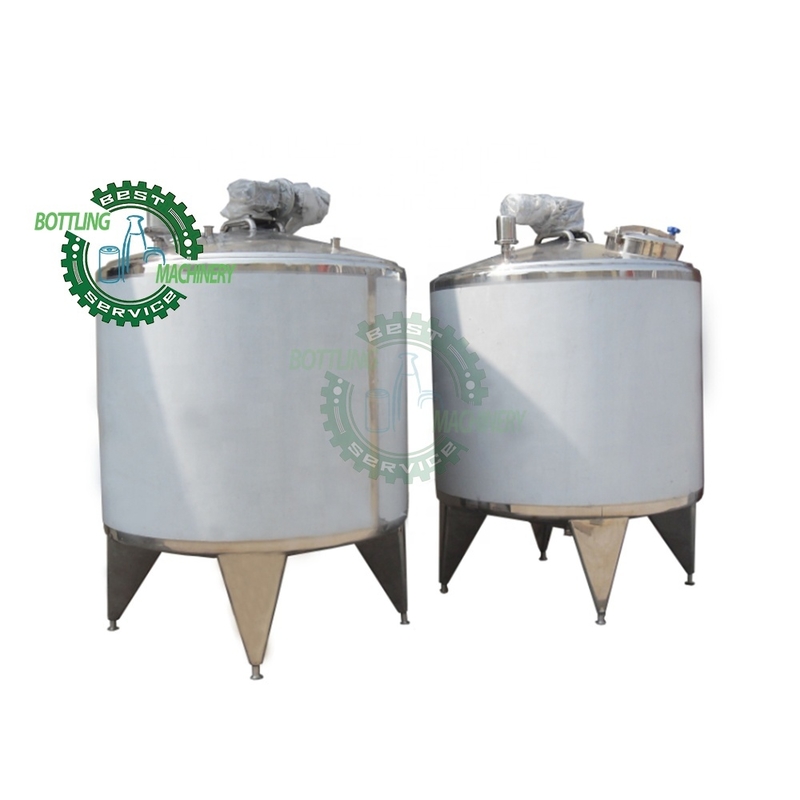

2000l Double Jacket Hot and Cold Mixing tank with Pump

Product Details:

Place of Origin:	Jiangsu province
Brand Name:	BOTTLING

Contact Now

Detailed Product Description

Processing:	Mixer	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Core Components:	Bearing, Motor, Pressure Vessel
Processing Types:	Carbonated Beverage	Voltage:	Customized
Power(w):	Customized	Weight:	500
Dimension(lwh):	Customized	Warranty:	1 Year
Application:	Storage,emulsify,mixing,heating,etc	Capacity:	Option From 500LPH-10000LPH
Material:	SUS304, SUS316	Layer:	1-3 Layers
Heating Method:	Steam Heating Or Electric Heating	Paddle/Stirrer Type:	Multiple Options
CIP Cleaning Ball:	Provided	Manhole:	Provided
Inlet&outlet:	38mm/51mm	Thickness:	2.5-3mm

Products Description

Single Layer mixing tank

Single layer mixing tank has the advantages of energy saving, corrosion resistance, strong production capacity, convenient cleaning and simple structure. It is mainly used for mixing dairy products, other elements and is an indispensable equipment for dairy products, beverages. Including: 1, quick open manhole at top 2, anti foaming liquid inlet, 3, CIP cleaning head, 4, dust proof respirator, 5, glass lever gauge 6, sampling valve 7, anti rotational flow outlet 8, low liquid lever sensor 9, height adjustable stand 10, Inclined oar agitator

Steam heating jacket mixing tank

This steam heating jacket mixing tank is used to mixing material like juice, milk, drink, chemicals, cosmetics and so on. It is with electric mixer and the motor could be regulated. It adopts the high quality of SUS304 material and meet with the food grade. It is easy to operate and washing. Also it could be set with automatic CIP spraying head for more easy washing. the heating method, we use steam heating. Including: 1, quick open manhole at top 2, anti foaming liquid inlet, 3, CIP cleaning head, 4, dust proof respirator, 5, glass lever gauge 6, sampling valve 7, anti rotational flow outlet 8, low liquid lever sensor 9, height adjustable stand 10, Inclined oar agitator

Electric heating jacket mixing tank

The electric heating jacket mixing tank is used to mixing material like juice, milk, drink, chemicals, cosmetics and so on. The heating method is to heat the heating medium by the electric heating tube installed in the jacket of the tank body to generate heat energy to indirectly heat the material in the tank. Because of its uniform heating, high use temperature (up to 300℃), fast heating speed, accurate temperature control, low pressure and high thermal efficiency, heat transfer oil is widely used as a heating medium in such equipment. Including: 1, quick open manhole at top 2, anti foaming liquid inlet, 3, CIP cleaning head, 4, dust proof respirator, 5, glass lever gauge 6, sampling valve 7, anti rotational flow outlet 8, low liquid lever sensor 9, height adjustable stand 10, Inclined oar agitator 11,Heating pipe

All models of our mixing tanks:

Capacity

1000LPH

2000LPH

3000LPH

4000LPH

5000LPH

6000LPH

Material

SUS304/SUS316

7000BPH

2000BPH

3000BPH

1000BPH

Structure

Single layer or inner layer+middle layer+insulation+outer layer

1.2KW

1.3KW

2KW

Cooling way

Customized

2600*1300*1600

2500*1300*1400

2000×1450×1600

3000*1500*1800

2000*1200*1750

Heating way

No heating or steam heating or Electric heating

350KG

380KG

280Kg

300Kg

250Kg

Manhole decametre

400mm

Diameter of inlet&outlet

38mm

51mm

Dimension

1100*1220

1450*1220

1600*1500

1900*1500

2070*1500

2300*1500

Detailed pictures

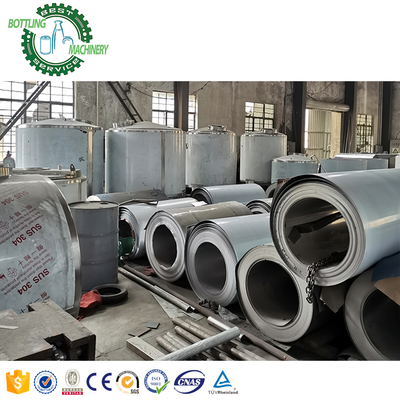

SUS304 material

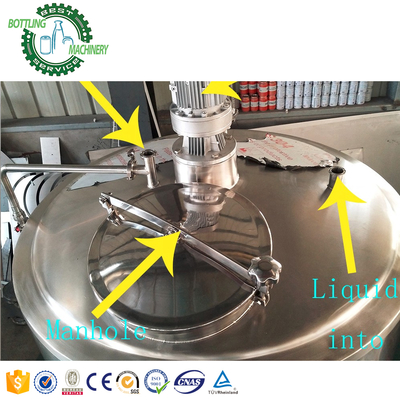

Top structure

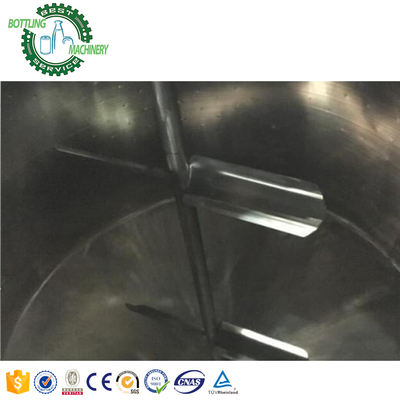

Inner structure

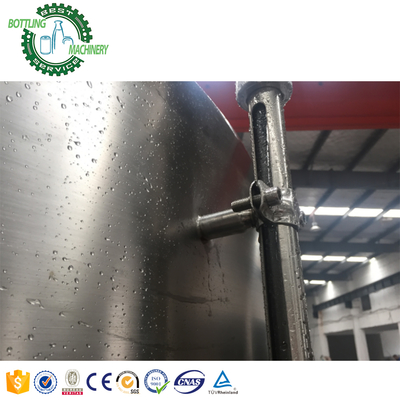

Sampling valve

Glass liquid level gauge

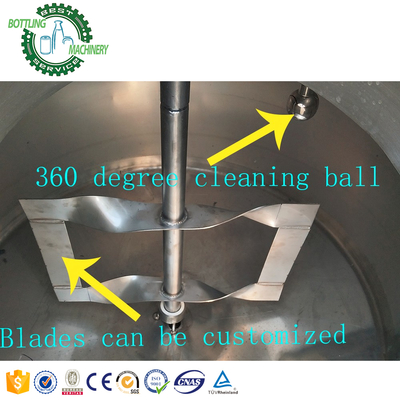

Stirrer Paddle

company profile

ZhangJiaGang City BOTTLING MACHINERY Co.,Ltd. is located in Zhangjiagang city which is core of beverage machinery producer collection in China. Integrated the industry advantages and its own development in R&D, production, sales, after sales service,
BOTTLING MACHINERY is ready to serve more and more customers with our full range products and best service.BOTTLING MACHINERY is very critical in the choice of raw materials and spare parts. Korea 304 /316 stainless steel plate, ABB, SEW motors, Siemens, Mitsubishi, OMRON electrical control components, FESTO CAMOZZ the control valve, as well as international precision machining center for the fine quality of the machine foundation.

We are the supplier who can design and manufacture for all kinds beverage production plant (pure drinking water, mineral water,carbonated drinks, juice, tea and beer, etc.)

Customer's service:
1. ZhangJiaGang City BOTTLING MACHINERY Co.,Ltd. can provide turn-key project for you, we can design the beverage factory plan according to your idea.
2. BOTTLING MACHINERY company have professional design team, our engineers can draw bottle samples and flow chart of workshop for you .
3. BOTTLING MACHINERY company can give you the best quotation for all kinds of beverage production, as long as you tell us which kind of drink you want to produce, what is your capacity(how many bottles one hour) what is you bottle material, pet or glass bottle or can, etc.

After service:
1. We send our engineers to your factory to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the goods shipping to you:
a. Machines layout drawing.
b. Electricity diagram.
c. Machine certificate.
d. General manual book/maintenance book.
3. After one year guarantee, the seller provides payable spare parts and technician's VISITING maintenance service.

Packing&Delivery of BOTTLING

1. Our machines are packed by wooden case. 2. The delivery date of this machine is within 10-25 days after payment.

FAQ

Q:Are you a manufacturer or trade company? A:We are a manufacturer in beverage bottling machine field more than 10 years, located at Leyu town, ZhangJiaGang, 2 hours from Shanghai, We will pick you up from Shanghai Pudong Airport to visit our factory. Q:Do you have any certification? A:SGS,ISO,CE etc Q:What about the delivery time? A:Usually 20-30 Working days for most kinds of machines Q:What about the machine’s capacity? A:1000 - 20000 bottles per hour based on 500ml bottle. Q:The after-sale service A:12 months warranty.

We can solve basic questions by telephone, email and video call. Engineer will go to buyer's factory to install, test machines, and train buyer's staff how to operate, maintain machines. Operating manuals will be sent with machines or by email. We also have overseas service center Q:If our bottle size changes, can we just do some adjustment on machine according to our new bottle? A:Yes. Maybe you just need some spare little parts to change. Q: If I want to purchase the machine, what information do I need to tell you? A:a. What kind beverage you want to produce? b. bottle volume? 250ml, 330ml, 500ml, 750ml, etc.? c. Producing capacity requirement? How many bottles per hour? d.Raw water analysis report . e.Voltage and altitude. Q:What kinds of product you supply? A: Drink water/juice/carbonated drink filling line for bottle or can. 5 gallon/20L bottle water filling line. Water treatment system. Bottle blowing molding machine.

After packing system(label machine, PE film shrink packing machine, carton machine)

Sachet water packing line
