Name: 1 2 M2 Stainless Steel Plate Heat Exchanger for Milk Cooler
Brand: Zhangjiagang City Bottling Machinery Co., Ltd.
Availability: InStock

Home Products Carbonated drink filling

1 2 M2 Stainless Steel Plate Heat Exchanger for Milk Cooler

Product Details:

Place of Origin:	Jiangsu
Brand Name:	BOTTLING

Contact Now

Detailed Product Description

Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Core Components:	Bearing	Heat Exchanger Type:	Plate Heat Exchanger
Liquid Flow Rate:	1ton/hour-6tons/hour	Maximum Pressure Rating:	1.0MPA
Voltage:	Customized	Dimension(lwh):	Customized
Warranty:	1 Year	Working Temperature Range:	-10℃-150℃
Key Selling Points:	Competitive Price	Material:	Stainless Steel, SUS304, SUS316
Weight (KG):	180	Product Name:	Plate Heat Exchanger
Usage:	Heating And Cooling	Capacity:	3m2-10m2
Flow:	1ton/hour-6tons/hour	Working Pressure:	1.0MPA
Plate Thickness:	0.55mm	Sealing Material:	EPDM (Suitable For Within 140℃)
Connector Size:	Flange DN32/DN50	Weight:	50-180Kg

Products Description

Plate heat exchanger

Plate heat exchanger is a new type of high efficiency heat exchanger which is composed of a series of metal sheets with a certain corrugated shape. Thin rectangular channels are formed between various plates, through which heat is exchanged. Plate heat exchanger is an ideal equipment for liquid - liquid and liquid - steam heat exchange. It has the characteristics of high heat exchange efficiency, small heat loss, compact and light structure, small space needed, convenient installation and cleaning, wide application, long service life and so on. Under the same pressure loss, its heat transfer coefficient is 3-5 times higher than the tubular heat exchanger,the occupied area is one-third of the tubular heat exchanger, and the heat recovery can be up to more than 90%.

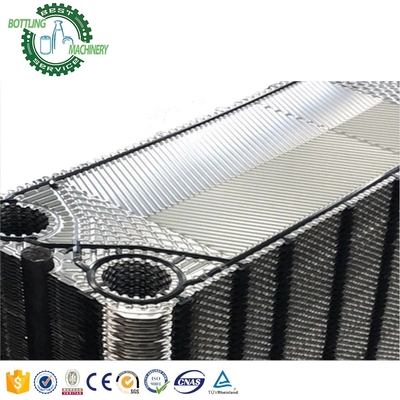

Features: 1,Unique board design Using the numerical simulation technology of ultra-fine mesh combined with the precise test measurement method, the heat exchange plate with superior flow and heat transfer performance is designed. The unique design of the plate grain can make the fluid at a lower flow rate can produce turbulence, greatly improving the heat transfer coefficient. The plate mold design is more reasonable, forming up to thousands of contact points between the plates, uniform pressure, high pressure resistance up to 25KG. 2, Advanced shunt zone The split-flow area of the plate is designed with streamline guide groove, which balances the difference of flow resistance caused by uneven fluid distribution in different flow channels, and avoids the disadvantages such as the decrease of heat transfer efficiency, pitting and dead Angle scaling caused by uneven flow distribution and flow dead Angle. 3,Super sealing gasket and groove Adopt stick - free snap type gasket, fixed firmly with plate, avoid pressure dislocation. And two seals are arranged between the hot and cold fluid, and the leakage area is in the middle. Even if a sealing pad is damaged, the leakage will not make the two fluids mix, but flow to the outside through the leakage hole. 4, The scientific designed framework The use of 5 points positioning suspension system, not only to ensure that the plate on the left and right positioning is accurate, but also to ensure that the plate can automatically lock each other when clamping, so in the plate reset can be easily accurate alignment, eliminate human operation error, so as to ensure the performance after the dismounting of heat exchanger, the service life of the gasket is more permanent. The front and back baffles are cut by numerical control and formed in one time, and the surface is micro-forged to enhance the surface strength. The locking nut and rolling parts are specially designed, and made of high strength, high wear-resisting and anti-corrosion materials.

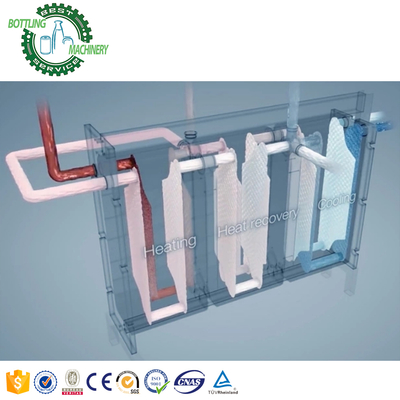

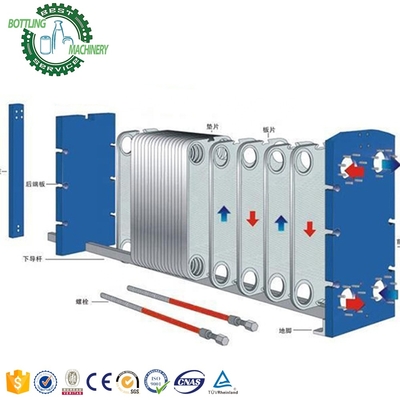

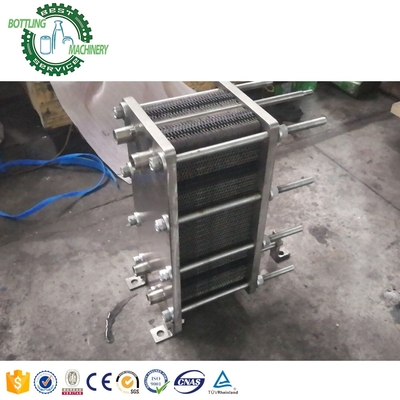

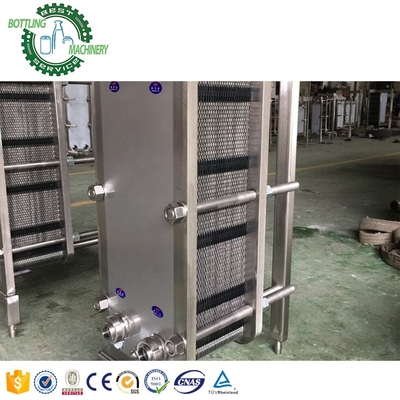

The plate heat exchanger is composed of heat transfer corrugated plates and a frame. The plates are clamped by bolts between the fixed compression plate and the movable compression plate. Many flow channels are formed inside the heat exchanger, and the plates are sealed with rubber. There is a pipe connecting the device and the outside on the compression plate. The plate is pressed by a corrosion-resistant metal sheet. The four corners are punched with corner holes for the medium to enter and exit, and there are hanging holes on the top and bottom. The herringbone corrugation can increase the disturbance to the fluid, so that the fluid can reach a turbulent state at a low speed, and obtain a high heat transfer effect. And adopts a special structure to ensure that the two fluid media will not leak.

Parameter of our plate exchanger:

Model

Flow

Working Pressure

Plate Thickness

Size(mm)

Weight

Contact material

Sealing material

Connector size

3m2

1T/h

1.0MPA

0.55mm

525*222*450

SUS304

EPDM
(Suitable for within 140℃)

Flange DN32

4m2

2T/h

688*275*450

Flange DN50

5m2

3T/h

920*320*450

150

6m2

4T/h

920*320*550

155

8m2

5T/h

920*320*450

170

10m2

6T/h

920*320*650

180

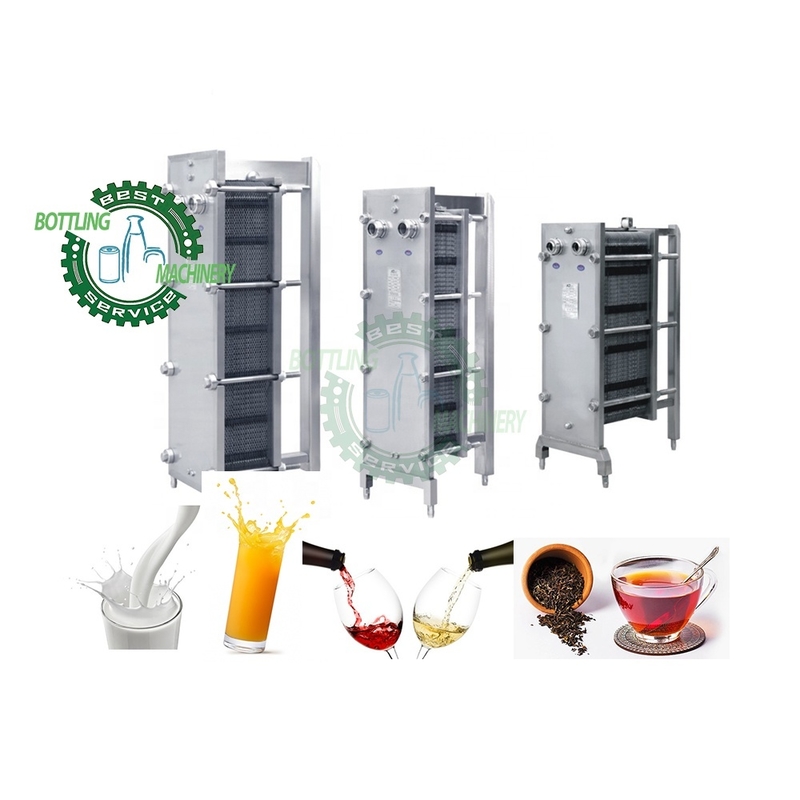

Application

Pasteurization Normal cooling and heating in such industries as dairy, brewage, beverage, food, etc. Heating and cooling in pharmaceutical industry.
