Name: Linear Separate Type 12-12-1 1500 Pcs/h 50cl 400ml 1 2 Liter Small Bottle Liquid Water Bottling Line Plant System Equipment
Brand: Zhangjiagang City Bottling Machinery Co., Ltd.
Availability: InStock

Home Products 0-2L water filling line

Linear Separate Type 12-12-1 1500 Pcs/h 50cl 400ml 1 2 Liter Small Bottle Liquid Water Bottling Line Plant System Equipment

Product Details:

Place of Origin:	Jiangsu
Brand Name:	BOTTLING

Contact Now

Detailed Product Description

Application:	Beverage	Packaging Type:	CANS, Bottles
Packaging Material:	Plastic, Glass	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	Any
Dimension(lwh):	110010501850mm*3	Warranty:	1 Year
Key Selling Points:	Competitive Price	Filling Material:	Milk, Water, Other
Filling Accuracy:	±1%	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Core Components:	Motor, PLC, Other
Weight (KG):	800	Usage:	For PET Bottle Water Filling
Filling Speed:	2000 Bottles Per Hour	Bottle Material:	PET PP
Bottle Volume:	10-5000ml	Automatic Bottle Rinser:	12 Washing Heads
Automatic Bottle Filler:	12 Filling Heads	Automatic Bottle Capper:	1 Sealing Head
Capper:	10008502000mm	Type:	Filling Machine
Warranty Of Core Components:	1 Year

Products Description

2000BPH automatic Bottle water filling machine

This filling machine is composed of three parts, a 12-head bottle washing machine, a 12-head filling machine, and a single-head capping machine. The three parts are connected by conveyer. The output is 1500-2000BPH, suitable for 0-5L bottles. We can configure water treatment, labeling machine, coding machine, and film shrink packing machine to form a complete water production line.

Principle of filler: This filler is developed on the basis of digesting and absorbing advanced technology introducing from abroad and is with international advanced level. It is mainly used for filling non carbonated drink. It is advanced in construction , steadily in performance, safe in operation , easy in maintenance high in production efficiency, and the speed can be regulated infinitively. The filler is the ideal choice for drink factories of small and middle size. The bottles will be taken into filler by conveyor, the dia-plate will turn each bottle to be caught by holding clap, with driven energy of motor, the holding claps will go up and down as main axis, when clap hold bottle, it will go up to press bottle mouth closely to filling head, at the meantime, filling value open and start to fill, when the bottle mouth leave the filling head, filling stop.

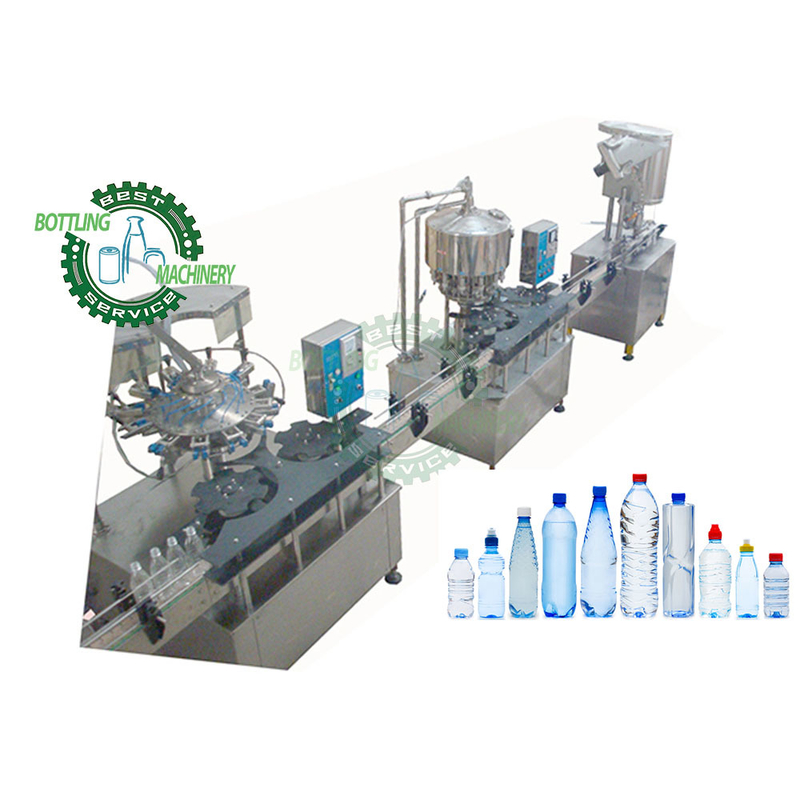

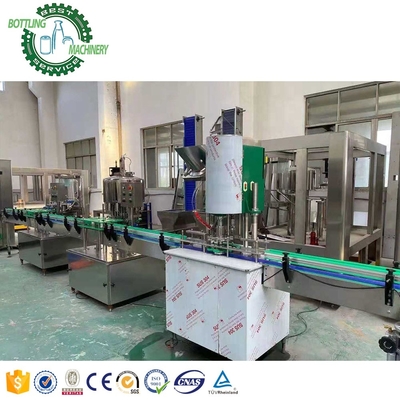

The whole 2000BPH water filling line

1.2, RO water treatment machine

2.1, 12-head washing machine

2.2, 12-head filling machine

2.3, 1-head screw capping machine

4.1, Semi-auto film shrink packing machine

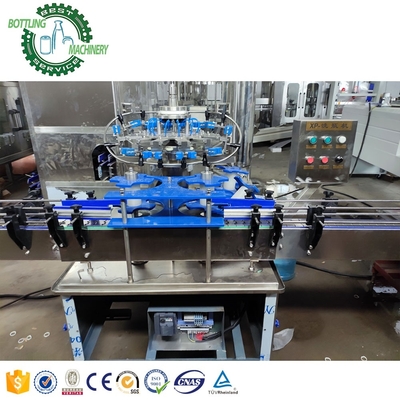

12 washing heads

The whole machine is made of SUS304. The spring clamp is by Italian design, can be slightly adjustable according to bottle neck size difference and can protect bottle neck. And water spray system is from American, make sure water spray averagely. Easy for clean and maintenance.

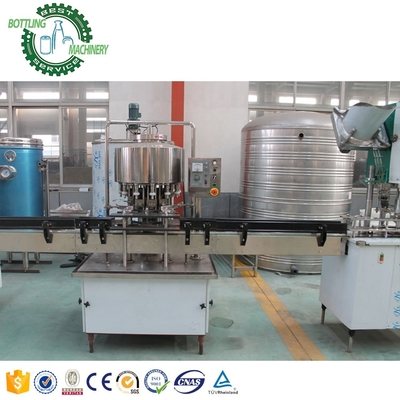

12 water filling heads

The whole machine is made of SUS304. The filling head is spring type without dead angel, no dripping. Easy for clean and maintenance. The holding clap model is suitable for all bottles with same bottle neck, it is easy for change bottle shape and volumes.

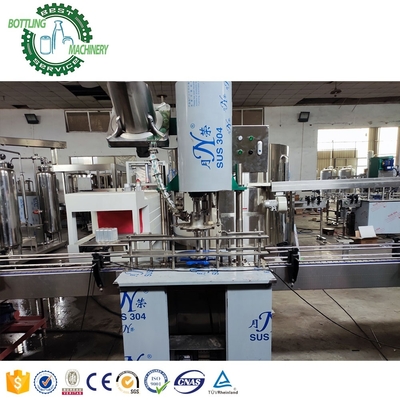

1 capping heads

Workers put bulk qty caps into cap loader, the cap loader will unscramble caps automatically and bring caps down in cap rail and then to capping head. Cap loader can hold more than 200pcs of caps each time, it will be convenient for adding caps often. When capping head catch cap, it will go down to bottle mouth and finish capping.

Parameters:
Model	Washing part	Filling part	Capping part
Heads	12	12	1
Power	0.92	1.1KW	1.1KW
Dimension	*10509501700*	*110010501850*	*10008502000*
Weight	700KG	800KG	600KG

In addition to filling machine, we can also provide the entire bottled water production line

Please check below:

RO water treatment machine

Bottle blow molding machine

Bottle water filling machine

Bottle labeling machine

Code printer

Film shrink packing machine

company profile

ZhangJiaGang City BOTTLING MACHINERY Co.,Ltd. is located in Zhangjiagang city which is core of beverage machinery producer collection in China. Integrated the industry advantages and its own development in R&D, production, sales, after sales service,
BOTTLING MACHINERY is ready to serve more and more customers with our full range products and best service.BOTTLING MACHINERY is very critical in the choice of raw materials and spare parts. Korea 304 /316 stainless steel plate, ABB, SEW motors, Siemens, Mitsubishi, OMRON electrical control components, FESTO CAMOZZ the control valve, as well as international precision machining center for the fine quality of the machine foundation.

We are the supplier who can design and manufacture for all kinds beverage production plant (pure drinking water, mineral water,carbonated drinks, juice, tea and beer, etc.)

Customer's service:
1. ZhangJiaGang City BOTTLING MACHINERY Co.,Ltd. can provide turn-key project for you, we can design the beverage factory plan according to your idea.
2. BOTTLING MACHINERY company have professional design team, our engineers can draw bottle samples and flow chart of workshop for you .
3. BOTTLING MACHINERY company can give you the best quotation for all kinds of beverage production, as long as you tell us which kind of drink you want to produce, what is your capacity(how many bottles one hour) what is you bottle material, pet or glass bottle or can, etc.

After service:
1. We send our engineers to your factory to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the goods shipping to you:
a. Machines layout drawing.
b. Electricity diagram.
c. Machine certificate.
d. General manual book/maintenance book.
3. After one year guarantee, the seller provides payable spare parts and technician's VISITING maintenance service.

Packing&Delivery of BOTTLING

1. Our machines are packed by wooden case. 2. The delivery date of this machine is within 10-25 days after payment.

FAQ

Q:Are you a manufacturer or trade company? A:We are a manufacturer in beverage bottling machine field more than 10 years, located at Leyu town, ZhangJiaGang, 2 hours from Shanghai, We will pick you up from Shanghai Pudong Airport to visit our factory. Q:Do you have any certification? A:SGS,ISO,CE etc Q:What about the delivery time? A:Usually 20-30 Working days for most kinds of machines Q:What about the machine’s capacity? A:1000 - 20000 bottles per hour based on 500ml bottle. Q:The after-sale service A:12 months warranty.

We can solve basic questions by telephone, email and video call. Engineer will go to buyer's factory to install, test machines, and train buyer's staff how to operate, maintain machines. Operating manuals will be sent with machines or by email. We also have overseas service center Q:If our bottle size changes, can we just do some adjustment on machine according to our new bottle? A:Yes. Maybe you just need some spare little parts to change. Q: If I want to purchase the machine, what information do I need to tell you? A:a. What kind beverage you want to produce? b. bottle volume? 250ml, 330ml, 500ml, 750ml, etc.? c. Producing capacity requirement? How many bottles per hour? d.Raw water analysis report . e.Voltage and altitude. Q:What kinds of product you supply? A: Drink water/juice/carbonated drink filling line for bottle or can. 5 gallon/20L bottle water filling line. Water treatment system. Bottle blowing molding machine.

After packing system(label machine, PE film shrink packing machine, carton machine)

Sachet water packing line
