Name: Automatic 4000b/h PET Plastic 500cc 600ml 650ml 1L Bottle Fresh Refreshing Drinkable Water Mouthwash Bottling Line Plant System
Brand: Zhangjiagang City Bottling Machinery Co., Ltd.
Availability: InStock

Home Products 0-2L water filling line

Automatic 4000b/h PET Plastic 500cc 600ml 650ml 1L Bottle Fresh Refreshing Drinkable Water Mouthwash Bottling Line Plant System

Product Details:

Place of Origin:	Jiangsu
Brand Name:	BOTTLING

Contact Now

Detailed Product Description

Application:	Beverage	Packaging Type:	Bottles
Packaging Material:	Plastic, Glass, Other	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	Any
Dimension(lwh):	210017002300mm	Warranty:	1 Year
Key Selling Points:	Energy Saving	Filling Material:	Other, Milk, Water
Filling Accuracy:	±1%	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Core Components:	Motor, PLC, Gear
Weight (KG):	2500	Usage:	For PET Bottle Water Filling
Filling Speed:	4000 Bottles Per Hour	Bottle Volume:	10-2000ml PET Bottle
Automatic Bottle Rinser:	12 Washing Heads	Automatic Bottle Filler:	12 Filling Heads
Automatic Bottle Capper:	4 Sealing Head	Air Pressure:	0.4Mpa
Type:	Filling Machine	Applicable Industries:	Manufacturing Plant

Products Description

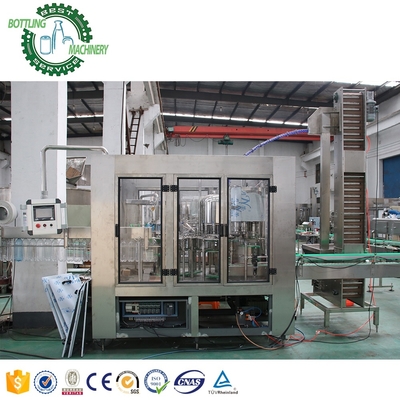

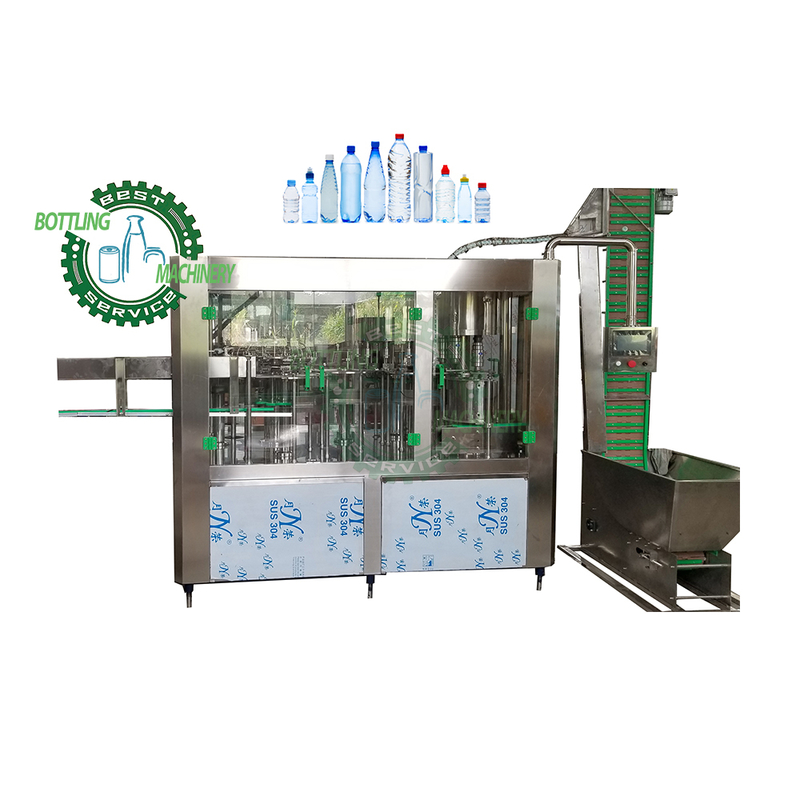

CGF12-12-4 4000BPH automatic Bottle water filling machine

This filling machine is mainly used for water injection operation, which integrates the three functions of bottle washing, filling and capping. The whole process is automatic, and it is convenient to adjust the machine to fill various types of bottles.
The advanced filling valve technology makes the filling operation faster and more stable. The famous brand programmable logic controller (PLC) is used to control the automatic operation of the machine. It is an ideal equipment for beverage manufacturers.

What is water bottling? From A to Z, water will pass through water treatment system, automatic bottling machine, bottle labeling and packaging system, etc.
In this production line, automatic bottling system is the most important.
Our new generation of CGF series water injection machines violate the regulations, and their capacity is at least 30% higher than that of our competitors. The new water injection system with vacuum system makes the water injection speed 30% - 40% faster than before. The new gland system makes the gland seal stable and not easy to damage.

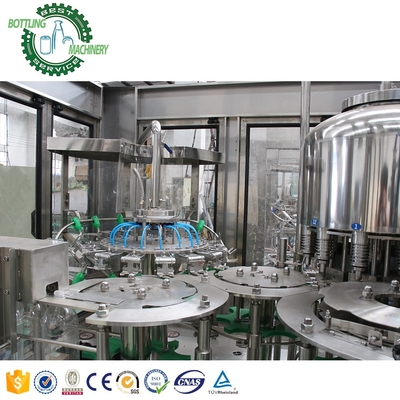

12 washing heads

1. Safety and hygiene: all parts are made of 304/316L stainless steel

2. The latest water saving technology: 30% water saving

3.The latest machine structure: avoid a lot of water inside the machine structure 4. strong and durable

5. The latest drainage design will not accumulate water

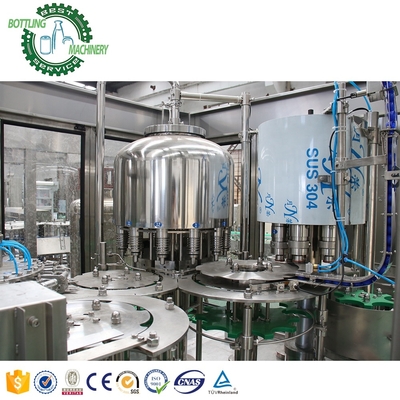

12 water filling heads

1. No bottle, no filling

2. Stainless steel 304/316L high precision filling nozzle

3. Adjustable level, purchased in Nanjing, the best valve in China

4. High-efficiency nozzles are flushed thoroughly, saving flushing water

5. The latest drainage design will
not accumulate water

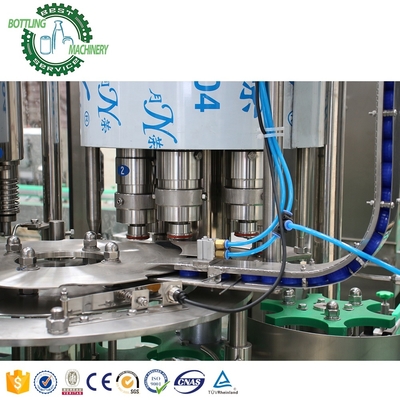

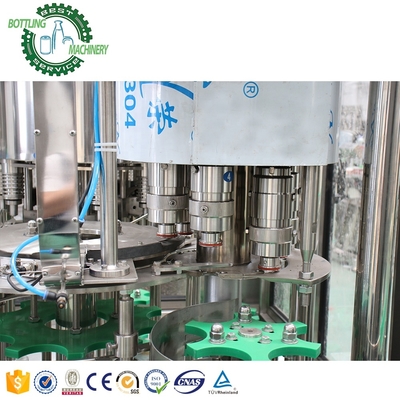

4 capping heads

1. All 304/316 stainless steel structures 2. no bottle no cap

3. Stop automatically when no bottle

4. The sealing effect is stable and reliable, and the defective rate is ≤0.2%. 5. Placement and capping system, electromagnetic capping head, with unloading function, to ensure the smallest collision of the bottle

Parameters of all models of our water filling machines:
Model	Bottle volume	Filling speed	Power	Dimension
CGF8-8-3	0-2L	3000BPH	4Kw	*185015502100mm*
CGF12-12-4	0-2L	4000BPH	5KW	*200017502100mm*
CGF18-18-6	0-2L	7000BPH	5.2KW	*245021002400mm*
CGF24-24-8	0-2L	12000BPH	5.2KW	*275024002400mm*
CGF32-32-10	0-2L	15000BPH	7KW	*335026802400mm*
CGF40-40-10	0-2L	20000BPH	7KW	*386031502400mm*
CGF50-50-12	0-2L	24000BPH	8KW	*450035002400mm*
CGF12-12-4B	3-10L	1500BPH	5.2KW	*250021002100mm*
CGF18-18-6B	3-10L	2500BPH	5.5KW	*360026002300mm*
CGF24-24-8B	3-10L	3500BPH	7.2KW	*380028002300mm*
CGF4-4-1	3-10L	500BPH	2.2KW	*55008002000mm*
CGF6-6-1	3-10L	600BPH	2.3KW	*65008002000mm*
CGF8-8-1	3-10L	1000BPH	2.5KW	*650010002000mm*

In addition to filling machine, we can also provide the entire bottled water production line

Please check below:

RO water treatment machine

Bottle blow molding machine

Bottle water filling machine

Bottle labeling machine

Code printer

Film shrink packing machine

company profile

ZhangJiaGang City BOTTLING MACHINERY Co.,Ltd. is located in Zhangjiagang city which is core of beverage machinery producer collection in China. Integrated the industry advantages and its own development in R&D, production, sales, after sales service,
BOTTLING MACHINERY is ready to serve more and more customers with our full range products and best service. BOTTLING MACHINERY is very critical in the choice of raw materials and spare parts. Korea 304 /316 stainless steel plate, ABB, SEW motors, Siemens, Mitsubishi, OMRON electrical control components, FESTO CAMOZZ the control valve, as well as international precision machining center for the fine quality of the machine foundation.

We are the supplier who can design and manufacture for all kinds beverage production plant (pure drinking water, mineral water,carbonated drinks, juice, tea and beer, etc.)

Customer's service:
1. ZhangJiaGang City BOTTLING MACHINERY Co.,Ltd. can provide turn-key project for you, we can design the beverage factory plan according to your idea.
2. BOTTLING MACHINERY company have professional design team, our engineers can draw bottle samples and flow chart of workshop for you .
3. BOTTLING MACHINERY company can give you the best quotation for all kinds of beverage production, as long as you tell us which kind of drink you want to produce, what is your capacity(how many bottles one hour) what is you bottle material, pet or glass bottle or can, etc.

After service:
1. We send our engineers to your factory to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the goods shipping to you:
a. Machines layout drawing.
b. Electricity diagram.
c. Machine certificate.
d. General manual book/maintenance book.
3. After one year guarantee, the seller provides payable spare parts and technician's VISITING maintenance service.

Packing&Delivery of BOTTLING

1. Our machines are packed by wooden case. 2. The delivery date of this machine is within 10-25 days after payment.

FAQ

Q:Are you a manufacturer or trade company? A:We are a manufacturer in beverage bottling machine field more than 10 years, located at Leyu town, ZhangJiaGang, 2 hours from Shanghai, We will pick you up from Shanghai Pudong Airport to visit our factory. Q:Do you have any certification? A:SGS,ISO,CE etc Q:What about the delivery time? A:Usually 20-30 Working days for most kinds of machines Q:What about the machine’s capacity? A:1000 - 20000 bottles per hour based on 500ml bottle. Q:The after-sale service A:12 months warranty.

We can solve basic questions by telephone, email, whatsapp, wechat and video call. Engineer will go to buyer's factory to install, test machines, and train buyer's staff how to operate, maintain machines. Operating manuals will be sent with machines or by email. We also have overseas service center Q:If our bottle size changes, can we just do some adjustment on machine according to our new bottle? A:Yes. Maybe you just need some spare little parts to change. Q: If I want to purchase the machine, what information do I need to tell you? A:a. What kind beverage you want to produce? b. bottle volume? 250ml, 330ml, 500ml, 750ml, etc.? c. Producing capacity requirement? How many bottles per hour? d.Raw water analysis report . e.Voltage and altitude. Q:What kinds of product you supply? A: Drink water/juice/carbonated drink filling line for bottle or can. 5 gallon/20L bottle water filling line. Water treatment system. Bottle blowing molding machine.

After packing system(label machine, PE film shrink packing machine, carton machine)

Sachet water packing line
