Name: Split 12 Head 1500bph Bottled Round Sport 1.5L 2L Bottle Pure Mineral Spring Drinking Still Water Rinser Filler Capper Machine
Brand: Zhangjiagang City Bottling Machinery Co., Ltd.
Availability: InStock

Home Products 0-2L water filling line

Split 12 Head 1500bph Bottled Round Sport 1.5L 2L Bottle Pure Mineral Spring Drinking Still Water Rinser Filler Capper Machine

Product Details:

Place of Origin:	Jiangsu
Brand Name:	BOTTLING

Contact Now

Detailed Product Description

Application:	Beverage	Packaging Type:	CANS, Bottles
Packaging Material:	Plastic, Glass	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	Any
Dimension(lwh):	110010501850mm*3	Warranty:	1 Year
Key Selling Points:	Competitive Price	Filling Material:	Milk, Water, Other
Filling Accuracy:	±1%	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Core Components:	Motor, PLC, Other
Weight (KG):	800	Usage:	For PET Bottle Water Filling
Filling Speed:	2000 Bottles Per Hour	Bottle Material:	PET PP
Bottle Volume:	10-5000ml	Automatic Bottle Rinser:	12 Washing Heads
Automatic Bottle Filler:	12 Filling Heads	Automatic Bottle Capper:	1 Sealing Head
Applicable Industries:	Manufacturing Plant	Warranty Of Core Components:	1 Year

Products Description

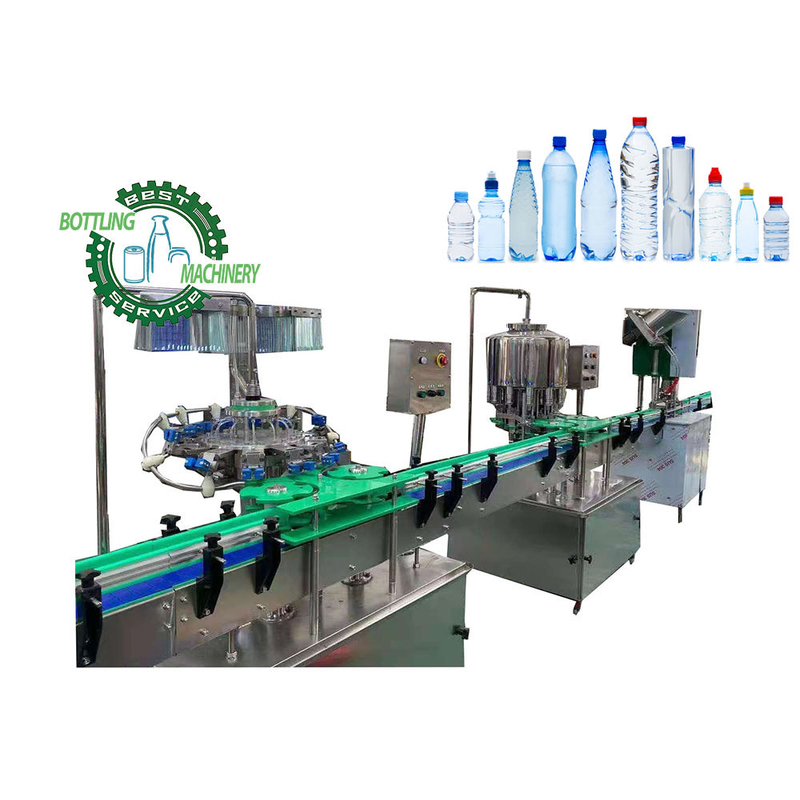

2000BPH automatic Bottle water filling machine

This filling machine is composed of three parts, a 12-head bottle washing machine, a 12-head filling machine, and a single-head capping machine. The three parts are connected by conveyer. The output is 1500-2000BPH, suitable for 0-5L bottles. We can configure water treatment, labeling machine, coding machine, and film shrink packing machine to form a complete water production line.

Principle of filler: This filler is developed on the basis of digesting and absorbing advanced technology introducing from abroad and is with international advanced level. It is mainly used for filling non carbonated drink. It is advanced in construction , steadily in performance, safe in operation , easy in maintenance high in production efficiency, and the speed can be regulated infinitively. The filler is the ideal choice for drink factories of small and middle size. The bottles will be taken into filler by conveyor, the dia-plate will turn each bottle to be caught by holding clap, with driven energy of motor, the holding claps will go up and down as main axis, when clap hold bottle, it will go up to press bottle mouth closely to filling head, at the meantime, filling value open and start to fill, when the bottle mouth leave the filling head, filling stop.

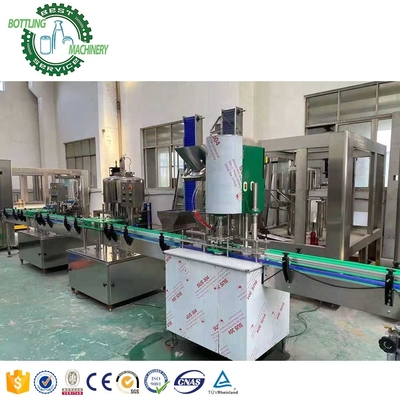

The whole 2000BPH water filling line

1.2, RO water treatment machine

2.1, 12-head washing machine

2.2, 12-head filling machine

2.3, 1-head screw capping machine

4.1, Semi-auto film shrink packing machine

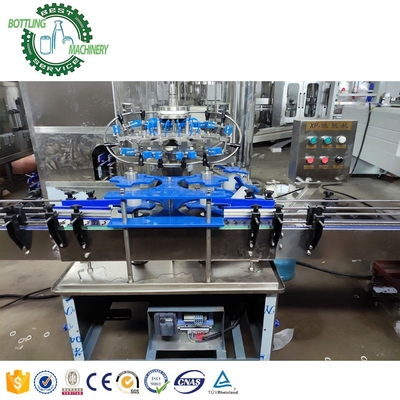

12 washing heads

The whole machine is made of SUS304. The spring clamp is by Italian design, can be slightly adjustable according to bottle neck size difference and can protect bottle neck. And water spray system is from American, make sure water spray averagely. Easy for clean and maintenance.

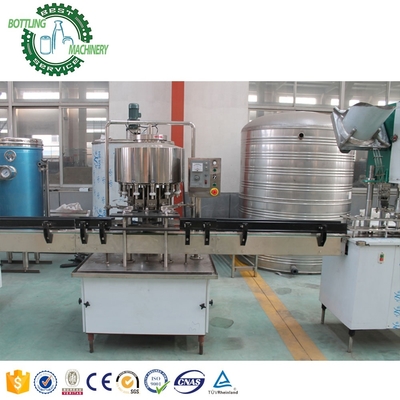

12 water filling heads

The whole machine is made of SUS304. The filling head is spring type without dead angel, no dripping. Easy for clean and maintenance. The holding clap model is suitable for all bottles with same bottle neck, it is easy for change bottle shape and volumes.

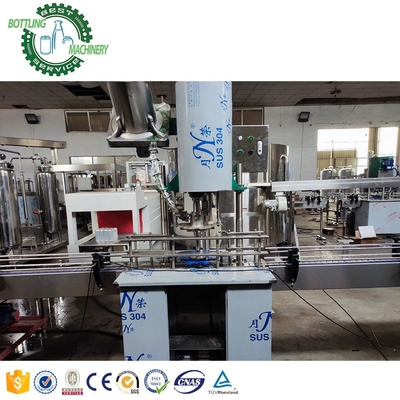

1 capping heads

Workers put bulk qty caps into cap loader, the cap loader will unscramble caps automatically and bring caps down in cap rail and then to capping head. Cap loader can hold more than 200pcs of caps each time, it will be convenient for adding caps often. When capping head catch cap, it will go down to bottle mouth and finish capping.

Parameters:
Model	Washing part	Filling part	Capping part
Heads	12	12	1
Power	0.92	1.1KW	1.1KW
Dimension	*10509501700*	*110010501850*	*10008502000*
Weight	700KG	800KG	600KG

In addition to filling machine, we can also provide the entire bottled water production line

Please check below:

RO water treatment machine

Bottle blow molding machine

Bottle water filling machine

Bottle labeling machine

Code printer

Film shrink packing machine

Packing&Delivery of BOTTLING

1. Our machines are packed by wooden case. 2. The delivery date of this machine is within 10-25 days after payment.
