Name: Semi Auto 330ml 250ml Aluminum Can 2 4 Head Nozzle CO2 Isobar Carbonated Drink Filling Machine Machinery
Brand: Zhangjiagang City Bottling Machinery Co., Ltd.
Availability: InStock

Home Products Semi automatic

Semi Auto 330ml 250ml Aluminum Can 2 4 Head Nozzle CO2 Isobar Carbonated Drink Filling Machine Machinery

Product Details:

Place of Origin:	Jiangsu
Brand Name:	BOTTLING
Certification:	CE ISO9001

Contact Now

Detailed Product Description

Application:	Beverage	Packaging Type:	CANS, Bottles
Packaging Material:	Plastic, Glass	Automatic Grade:	Automatic
Driven Type:	Pneumatic	Voltage:	Customized
Dimension(lwh):	10005001400mm	Warranty:	1 Year
Key Selling Points:	High-accuracy	Filling Material:	Beer, Other, Carbonated Drink, Soft Drink, Soda Water, Sparking Water, Spirit
Filling Accuracy:	±0.5%	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Core Components:	Motor, PLC, Gear
After-sales Service Provided:	Video Technical Support, Field Installation, Commissioning And Training, Online Support, Field Maintenance And Repair Service, Free Spare Parts	Product Name:	Semi Auto 2/4 Head Carbonated Drink Filling Machine
Filling Speed:	0-1500 Bottles Per Hour	Bottle Type:	Glass Or Plastic And Can
Bottle Volume:	100-2000ml	Filling Type:	Isobaric Filling Type
Filling Nozzles:	2/4	Automatic Grade:	Semi-automatic / Manual
Material:	SUS304	Application:	Carbonated Drink, Beer, Soda, Soft Drinketc.
Weight:	150

Products Description

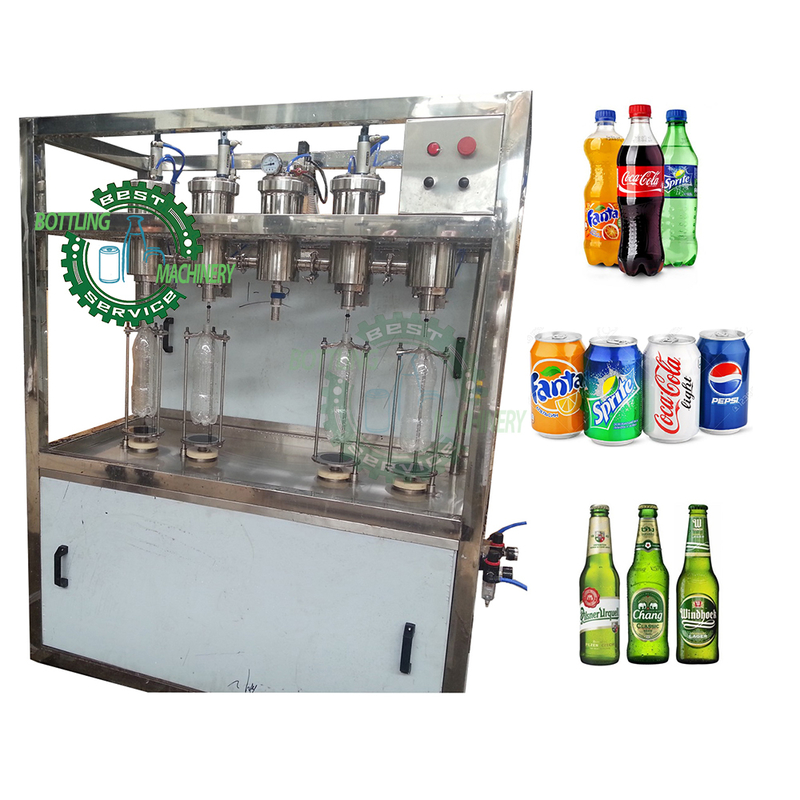

Semi auto 2/4 head filling machine for beer and carbonated drink 500-1000BPH

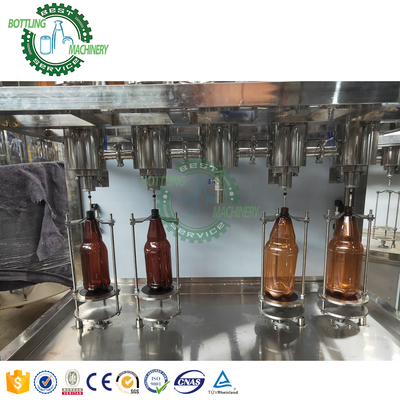

Semi auto balance pressure filling machine for PET glass bottle and can

1, The filling system is composed of liquid cylinder mechanism, liquid inlet mechanism, lifting mechanism, filling valve mechanism, on-off valve mechanism, etc. 2, The aerated beverage enters into the feed pipe through the steam water mixer. If the beverage in the cylinder is lower than the minimum liquid level, the liquid inlet solenoid valve will open and the beverage enters into the liquid cylinder. When the liquid level reaches the maximum line, the valve will close. 3, There is a certain pressure in the cylinder when filling the aerated beverage, which is generally 0.3-0.6mpa. You can choose according to the type of beverage and the requirements of customers, but the pressure in the cylinder must be smaller than that in the mixer, otherwise the beverage will not reach the filling cylinder. The pressurized gas should be injected into the hydraulic cylinder to ensure the constant pressure in the hydraulic cylinder. This pressure can be regulated by the pressure regulating valve of the intake air. 4, The so-called isobaric filling is to add pressure to the bottles waiting for filling. First, the isobaric pressure between the liquid cylinder and the beverage bottle is established, which is equivalent to the saturation pressure of the gas in the gas containing beverage, and then the filling is realized under this condition 5, Isobaric filling can reduce the loss of carbon dioxide in the product and prevent excessive foaming in the filling process from affecting the product quality and quantitative accuracy. It is widely used in the filling of beverages containing carbon dioxide, such as beer, soda and sparkling wine.

Name	Beer filling machine
Equipment model	BL-2A BL-4A
Filling temperature	2-7℃
Filling station	2/4
Bottle diameter	50~110mm
Filling Material	beer, Carbonated Drink
Dimension	1360×700×1800(LWH)
Weight	400kg
Bottle height	140-350mm
Filling range	0.25-2.5L
Speed	500-1000 bph (500ml)
Filling pressure	0.3-0.6Mpa

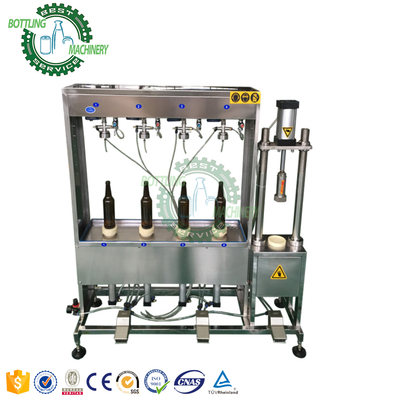

Semi auto beer bottle filling machine

1, This filling machine adopts isobaric filling for beverage with gas. 2, The machine could be used to filling all kinds of carbonated beverage like beer,cola,sprite,fanta,and so on. 3, This machine should be used with mixing machine of carbonated beverage and air compressor. 4, With advanced PLC control,this bottle semi auto beer bottle filling machine/small co2 carbonated drink filling machine could filling the beverage precisely and effectively. 5, The parts in touch with supplies are made of stainless steel, non-toxic polypropylene and copper to ensure the supplies not being contaminating. 6, This machine is with advanced structure, stable performance, and easy to operate.

Model	BL-4B
Voltage	220V
Power	550W
Suitable air pressure	0.2~0.3MPa
Filling principle	Isobaric
Nozzles numbers	4
Filling speed	1000~1200bottles/h
Suitable bottle height	250mm or customized
Suitable bottle dia	26/28/32/36mm or customized
Filling volume	300-2500ML
Size	1190mm680mm1870mm
Weight	160kg
Warranty	1 year

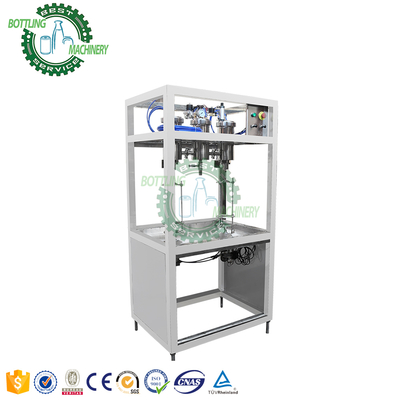

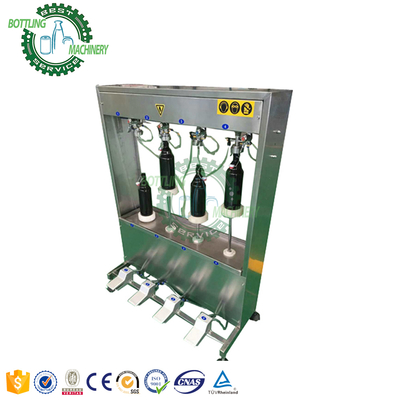

Small semi auto co2 carbonated drink filling machine for PET and glass bottle

Semi-automatic filling equipment is small in size, reasonable in design, simple and compact in machine structure, easy to operate, easy to replace processing parts, suitable for small and individual filling companies, especially for small craft beer equipment such as bars. The processing parts are simple and easy to replace. Manual and kinetic energy to meet customer's different requirements. it is suitable for filling beer /soft drinks/ wine /champagne /vogat /cocktail /Whiskey /Coke /Sprite /Sparkling water/Kombucha and other CO2 drinks liquid

Precision multi-control valve: Smooth, high quality and more convenient Food grade stainless steel: Hard texture, tightly combined Beer bottle base: Smooth operation and strong support ability Pneumatic control pedal: Controlled by pneumatic components, easy to operate Compressed air dial: Clear instructions and precise instruments

Model					BL-4C
Filling range					150-750ml
Filling head					4 heads
Filling capacity					240-300bottles per hour
Bottle height					160-320mm
Bottle diameter					50-80mm
Weight					110Kg
Size					10005001400mm

In addition to filling machine, we can also provide the entire bottled water production line

Please check below:

RO water treatment machine

Bottle blow molding machine

Bottle blow dryer

Bottle labeling machine

Code printer

Film shrink packing machine

company profile

ZhangJiaGang City BOTTLING MACHINERY Co.,Ltd. is located in Zhangjiagang city which is core of beverage machinery producer collection in China. Integrated the industry advantages and its own development in R&D, production, sales, after sales service,
BOTTLING MACHINERY is ready to serve more and more customers with our full range products and best service.BOTTLING MACHINERY is very critical in the choice of raw materials and spare parts. Korea 304 /316 stainless steel plate, ABB, SEW motors, Siemens, Mitsubishi, OMRON electrical control components, FESTO CAMOZZ the control valve, as well as international precision machining center for the fine quality of the machine foundation.

We are the supplier who can design and manufacture for all kinds beverage production plant (pure drinking water, mineral water,carbonated drinks, juice, tea and beer, etc.)

Customer's service:
1. ZhangJiaGang City BOTTLING MACHINERY Co.,Ltd. can provide turn-key project for you, we can design the beverage factory plan according to your idea.
2. BOTTLING MACHINERY company have professional design team, our engineers can draw bottle samples and flow chart of workshop for you .
3. BOTTLING MACHINERY company can give you the best quotation for all kinds of beverage production, as long as you tell us which kind of drink you want to produce, what is your capacity(how many bottles one hour) what is you bottle material, pet or glass bottle or can, etc.

After service:
1. We send our engineers to your factory to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the goods shipping to you:
a. Machines layout drawing.
b. Electricity diagram.
c. Machine certificate.
d. General manual book/maintenance book.
3. After one year guarantee, the seller provides payable spare parts and technician's VISITING maintenance service.

Packing&Delivery of BOTTLING

1. Our machines are packed by wooden case. 2. The delivery date of this machine is within 10-25 days after payment.

FAQ

Q:Are you a manufacturer or trade company? A:We are a manufacturer in beverage bottling machine field more than 10 years, located at Leyu town, ZhangJiaGang, 2 hours from Shanghai, We will pick you up from Shanghai Pudong Airport to visit our factory. Q:Do you have any certification? A:SGS,ISO,CE etc Q:What about the delivery time? A:Usually 20-30 Working days for most kinds of machines Q:What about the machine’s capacity? A:1000 - 20000 bottles per hour based on 500ml bottle. Q:The after-sale service A:12 months warranty.

We can solve basic questions by telephone, email, whatsapp, wechat and video call. Engineer will go to buyer's factory to install, test machines, and train buyer's staff how to operate, maintain machines. Operating manuals will be sent with machines or by email. We also have overseas service center Q:If our bottle size changes, can we just do some adjustment on machine according to our new bottle? A:Yes. Maybe you just need some spare little parts to change. Q: If I want to purchase the machine, what information do I need to tell you? A:a. What kind beverage you want to produce? b. bottle volume? 250ml, 330ml, 500ml, 750ml, etc.? c. Producing capacity requirement? How many bottles per hour? d.Raw water analysis report . e.Voltage and altitude. Q:What kinds of product you supply? A: Drink water/juice/carbonated drink filling line for bottle or can. 5 gallon/20L bottle water filling line. Water treatment system. Bottle blowing molding machine.

After packing system(label machine, PE film shrink packing machine, carton machine)

Sachet water packing line
