Name: Professional Services Top Manufacturer Industrial Full Set a to Z Can Glass Bottle Beer Filling Equipment
Brand: Zhangjiagang City Bottling Machinery Co., Ltd.
Availability: InStock

Home Products Beer filling plant

Professional Services Top Manufacturer Industrial Full Set a to Z Can Glass Bottle Beer Filling Equipment

Product Details:

Place of Origin:	Jiangsu
Brand Name:	BOTTLING
Certification:	CE ISO9001

Contact Now

Detailed Product Description

Application:	Beverage	Packaging Type:	Bottles
Packaging Material:	Glass	Automatic Grade:	Automatic
Driven Type:	Pneumatic	Voltage:	Customized, According To Customer Requirements
Dimension(lwh):	2.51.92.3m	Warranty:	1 Year
Key Selling Points:	High-accuracy	Filling Material:	Beer, Other, Carbonated Drink, Soft Drink, Soda Water, Sparking Water, Spirit
Filling Accuracy:	±0.5%	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Core Components:	Motor, PLC, Gear
After-sales Service Provided:	Video Technical Support, Field Installation, Commissioning And Training, Online Support, Field Maintenance And Repair Service, Free Spare Parts	Weight (KG):	2000
Product Name:	Glass Bottle Beer Filling Machine	Filling Speed:	1000-50000 Bottles Per Hour
Control:	PLC (SIEMENS)+Touch Screen	Bottle Volume:	100-2000ml Glass Bottle
Filling Type:	Isobaric Filling Type	Material:	SUS304 / 316
Driven Type:	Electric

Products Description

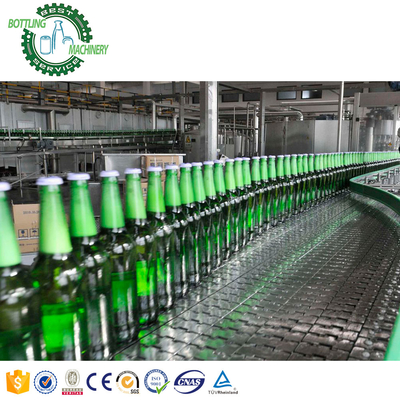

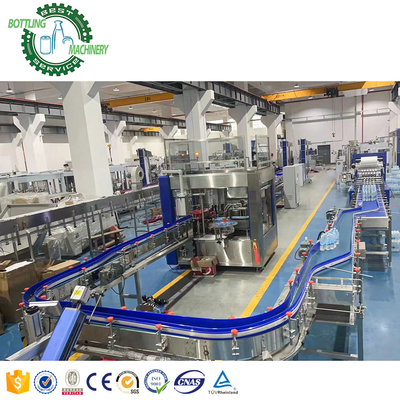

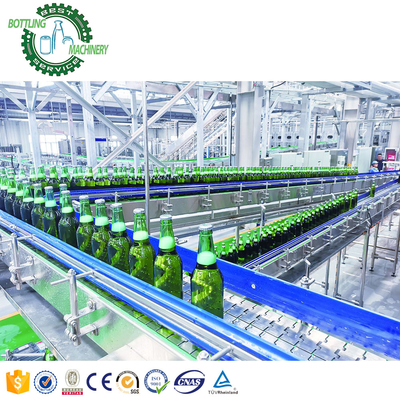

Glass bottle Beer production line

The complete solution of glass bottle beer filling machine/beer bottling plant, including:

1, Water Treatment Plant

2, Beer brewing equipment 3, Beer bottle 3 in 1 glass bottle washing, filling, and capping machine 4, Beer bottle pasteurization tunnel 5, Beer bottle automatic self-adhesive round glass bottle labeling machine

6, Beer bottle automatic packing system

1. Water Treatment Plant

According to customer's raw water analysis report and the final water standard request, we will suggest customer to choose the suitable water treatment plant.

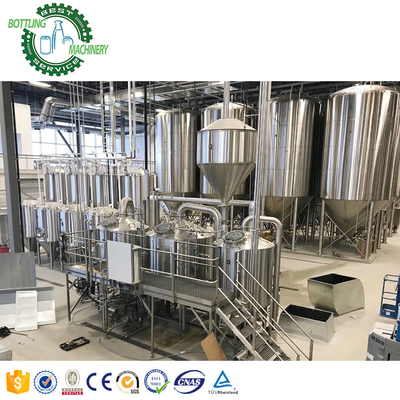

2. Beer brewing equipment

Using a sealed stainless steel tank to ferment wort with yeast can control temperature and pressure. Boil the wort again in a boiling pot, which helps to kill any microorganisms, activate enzymes in the wort, and provide necessary nutrients for subsequent yeast fermentation. A grinder or crusher crushes malt into flour or bran to release starch that can be converted into sugar. The yeast dispensing device dispenses yeast into the fermentation tank to begin the fermentation process. Temperature control is required during the brewing process to ensure optimal fermentation conditions, which can be achieved through the use of temperature controllers, coolers, and heaters.

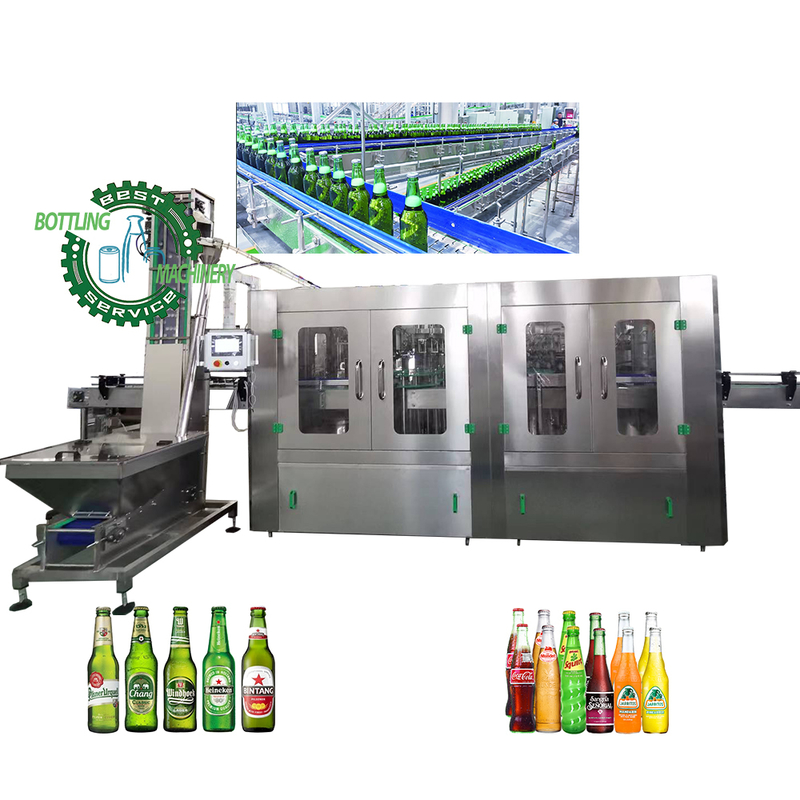

3. Beer bottle 3 in 1 glass bottle washing, filling, and capping machine

Generally, spraying is used for cleaning, and high-pressure water flow is used for cleaning to remove impurities, residues, and bacteria inside the bottle, ensuring the hygiene and cleanliness of the bottle. Once the bottle is cleaned, the machine will automatically fill the prepared beer into the bottle. It can control the filling flow and amount, ensuring that each bottle is correctly filled with an appropriate amount of beer and maintaining an appropriate gas content. After filling beer, the machine will automatically cap the bottle. Usually, bottle caps or stoppers are used to seal the beer, aiming to maintain its freshness and carbonation level. The sealing process usually involves placing the bottle cap on the bottle mouth and securely securing it to the bottle using screws or pressure. By combining these three functions, the beer three in one filling machine can achieve an automated beer filling process, improve production efficiency and product consistency, while ensuring product hygiene and quality.

Technical parameter of all our glass bottle beer filling machine:
Model	Capacity(BPH)	Motor power (kw)	Dimension(LWH)	Weight (kg)
BCGF14-12-4	1200-1800	2.2kw	200018002200	3000
BCGF18-18-6	3000-4000	3.7kw	246017202650	3500
BCGF24-24-8	5000-6000	5.5kw	310021002650	4500
BCGF32-32-10	7000-8000	6.5kw	350025002650	5600
BCGF40-40-12	8000-90000	7.5kw	460033002650	6800
BCGF50-50-12	13000-15000	11kw	530045003400	7600
BCGF60-60-15	18000-20000	15kw	650045003400	9800
Machine Filling Processing	Washing bottle --- CO2 into bottle --- Vacuum --- CO2 --- Vacuum --- Filling Beer --- Capping

Main features:

(1) the filling machine is mainly used for washing, filling and sealing bottles, can be used for coke, Sprite,Beer and other carbonated beverages. (2) washing bottles, filling, capping on a machine. (3) the time between the material and the external is shortened. And improve the health conditions, production capacity and economic benefits. (4) in the series of filling machine using suspended transmission bottle structure, replacing the bottle is more convenient, faster and more energy saving. (5) the main machine adopts advanced programmable controller control technology. The main electrical components used in MITSUBISHI, OMRON, SIEMENS and other international well-known products.

Washing Part

Rotatory bottle-rinsing machine has the functions of not opening the valve and rinsing without bottle, which is working from bottle entrance,bottle transportation,bottle clipping,bottle turning around with synchronously rinsing inside of the bottle to water-dropping and exit have the functions of not opening the valve and rinsing without bottles.

Filling part

The Machine adopts the advanced international technology .The design is scientific and reasonable ,The filling heads Adopting the way of filling by holding the necks of the bottle, plus the function of pre-cover of the centralizing cover with high precise centralization,which ensure the right seating of mouth of the bottle and filling valve,with low liquid loss.

Capping part

This series of Automatic Glass Bottle Beer Filling Machine can meet the filling-sealing requirements of different sealing manners for crown cap /screw cap or others. Adopting crowning the caps with magnetic force,which passes the torque with powerful and constant magnet,and the torque can be adjusted to meet the need of many kind of caps.

4. Beer bottle pasteurization tunnel By operating the heated spray channel, the filled beer bottles can be effectively sterilized and dried, providing higher safety and quality assurance for product storage and transportation. Main features : Heating device: The channel is equipped with heating elements, heaters, or heating tubes and other heating devices to provide thermal energy. The heating device can heat air or liquid to achieve heating of the bottle. Spray system: The spray system sprays heated air or liquid onto the surface of the bottle through a nozzle or nozzle. The spray system can evenly cover the entire bottle, ensuring a uniform heating effect. Control system: The control system is used to regulate the operation of heating devices and sprinkler systems. It can set the heating temperature and spraying time to ensure that the surface of the bottle is properly heated and sprayed. Sterilization and drying: The main purpose of the heated spray channel is to sterilize and dry the bottle. Heating temperature and spraying liquid or air can eliminate bacteria and microorganisms on the surface of the bottle, while promoting the drying of the bottle to ensure the hygiene and quality of the product.

5. Beer bottle automatic self-adhesive round glass bottle labeling machine

This automatic self-adhesive labeling machine can attach three labels on glass round bottles, including the front label, back label, and neck label.It can automate the labeling process, achieve efficient, accurate, and consistent labeling, improve production efficiency, and ensure the appearance quality and labeling accuracy of products.

6. Beer bottle automatic packing system

The packing system consists of three parts: an unboxing machine, a grabbing packing machine, and a sealing machine. The unboxing machine unfolds the folded cardboard box, then the grabbing packing machine grabs the glass bottle into the cardboard box through the gripper, and finally the sealing machine applies tape to the cardboard box.It can automate the packaging process, improve packaging efficiency, and ensure product safety and quality.

company profile

ZhangJiaGang City BOTTLING MACHINERY Co.,Ltd. is located in Zhangjiagang city which is core of beverage machinery producer collection in China. Integrated the industry advantages and its own development in R&D, production, sales, after sales service.

We are the supplier who can design and manufacture for all kinds beverage production plant (pure drinking water, mineral water,carbonated drinks, juice, tea and beer, etc.)
BOTTLING MACHINERY is ready to serve more and more customers with our full range products and best service. BOTTLING MACHINERY is very critical in the choice of raw materials and spare parts. 304 /316 stainless steel plate, ABB, SEW motors, Siemens, Mitsubishi, OMRON electrical control components, FESTO CAMOZZ the control valve, as well as international precision machining center for the fine quality of the machine foundation.

Advantage products:

Certifications of BOTTLING

CE certificate

Foreign Business Registration

CE certificate

Bill of lading

Letter of credit

Certificate of origin

Successful cases

Customer Visiting

Customer's service:
1. ZhangJiaGang City BOTTLING MACHINERY Co.,Ltd. can provide turn-key project for you, we can design the beverage factory plan according to your idea.
2. BOTTLING MACHINERY company have professional design team, our engineers can draw bottle samples and flow chart of workshop for you .
3. BOTTLING MACHINERY company can give you the best quotation for all kinds of beverage production, as long as you tell us which kind of drink you want to produce, what is your capacity(how many bottles one hour) what is you bottle material, pet or glass bottle or can, etc.

After service:
1. We can send our engineers to your factory to help installing, commissioning and training, the engineers start from our factory area.
2. We supply the necessary documents to you:
a. Machines layout drawing.
b. Electricity diagram.
c. Machine certificate.
d. General manual book/maintenance book.
3. After one year guarantee, the seller provides payable spare parts and technician's VISITING maintenance service.

FAQ

Q:Are you a manufacturer or trade company? A:We are a manufacturer in beverage bottling machine field more than 20 years, located at Jingfeng town, ZhangJiaGang, 2 hours from Shanghai Pudong Airport.

Q: For a new starter, how can you help me start and run a water or beverage bottling plant? A: We can help you do the bottle design, label design and choose the suitable labeling and package type according to your local market. If you have confirm the factory size, we can also make the machine layout design accordingly. We can help you install the machines, train your staff how to operate, maintain the machines and even help you hire experienced Chinese engineer to work in your factory as a production manager. Q: How can we check our machines if we order the machines from you? A: We will test all the machines before shipment and send you the testing videos, you can come personally or ask your China agent to inspect the machines. Q: How can I know the quality of your machines before I order? A: We have many projects in different countries, with the customers’ permission, we can guide you to visit the factories and see the machines running. You are also very welcome to visit our company in China to see the machine running in our factory. Q: Can your company provide turnkey project from A to Z? A: Yes, we can provide the turnkey project for beverage production line, from PET preform and cap making machine, PET bottle blowing machine, water treatment plant, juice or carbonated drink mixing plant, filling and packing machines.

Q:The after-sale service A:12 months warranty.

We can solve basic questions by telephone, email and video call. Engineer can go to buyer's factory to install, test machines, and train buyer's staff how to operate, maintain machines. Operating manuals will be sent. Q:What kinds of product you supply? A: Drink water/juice/carbonated drink/oil/alcohol/milk production and filling line for bottle or can. Water treatment system. Bottle blowing molding machine.

After packing system(label machine, PE film shrink packing machine, carton machine)

Filling machines for various sauces in the kitchen Filling machines for various liquids in the bathroom

5 gallon/20L bottle water filling line.
