Name: Semi Auto Wine Alcohol Liquor Whisky Liquid Tea PET Glass Bottle 2 4 Head Filling Equipment
Brand: Zhangjiagang City Bottling Machinery Co., Ltd.
Availability: InStock

Home Products Semi-auto filling machine

Semi Auto Wine Alcohol Liquor Whisky Liquid Tea PET Glass Bottle 2 4 Head Filling Equipment

Product Details:

Place of Origin:	Jiangsu
Brand Name:	BOTTLING

Contact Now

Detailed Product Description

Application:	Beverage, Oil	Packaging Type:	CANS, Bottles, Barrel, Stand-up Pouch, Bags, Pouch, Other
Packaging Material:	Wood	Automatic Grade:	Semi-automatic
Driven Type:	Electric	Voltage:	Customized
Warranty:	1 Year	Key Selling Points:	High-accuracy
Filling Material:	Water, Oil, Juice, Other	Filling Accuracy:	≤±0.1%
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Core Components:	Motor, PLC, Gear	Weight (KG):	150
Product Name:	2/4 Head Big Bottle Filling Machine	Filling Speed:	500-1500 Bottles Per Hour
Automatic Grade:	Semi Automatic	Bottle Volume:	10-5000ml
Filling Head:	2 Or 4 And Customized	Material:	SUS304
Packing Material:	Wooden Case	Air Pressure:	0.4-0.6Mpa
Type:	Filling Machine	Warranty Of Core Components:	1 Year

Products Description

All models of our semi automatic Bottle filling machine

Besides automatic filling machine, We can also supply various of semi-auto filling machines which can fill oil, water, juice, wine, alcohol, cream, honey, ketchup, detergent, perfume, shampoo, lotion etc. Please let the models below:

Don't worry, you will find one suitable for you. or you can contact to us to recommend the right machine you like.

Advantages: 1. Rich experience: Many years of experience in manufacturing machinery industry, rich experience and trustworthy. 2. Customized according to demand: The equipment can be adjusted and customized according to customer products. 3. Low failure rate: The factory has strong strength, mature technology and low failure rate. 4. Efficient production: The company uses high-precision processing equipment to manufacture materials, which is intelligent and efficient.

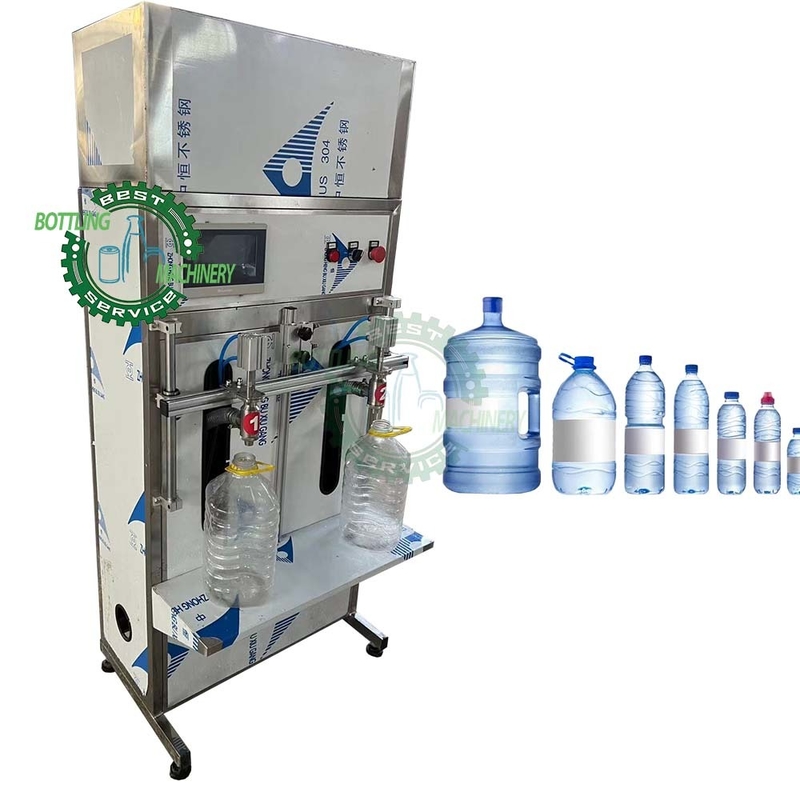

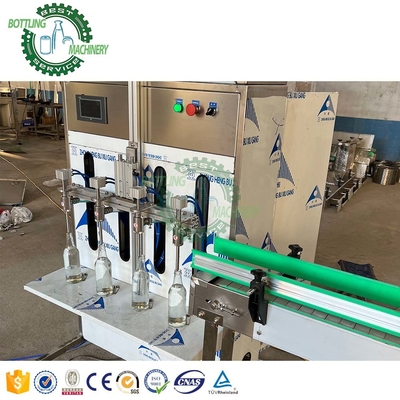

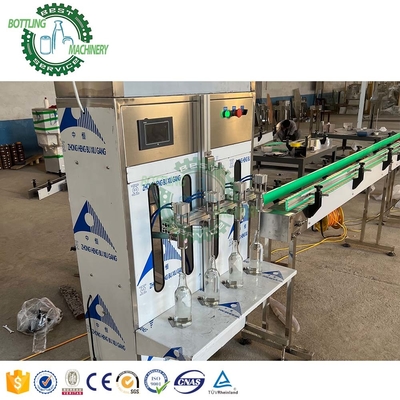

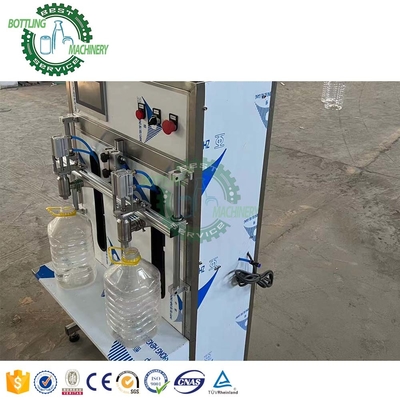

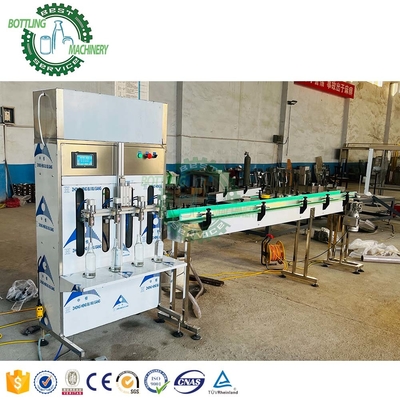

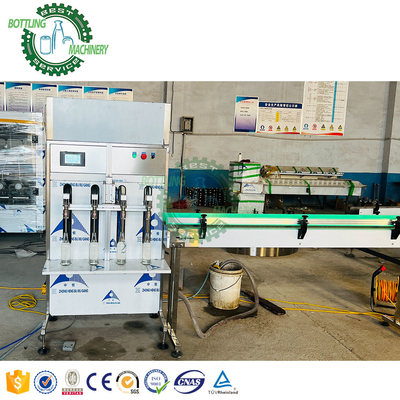

Semi auto big bottle 2/4 head filling machine for water juice oil etc.

1. The filling machine is a fully automatic quantitative liquid filling machine, which is suitable for filling various water, fruit juice, oils, such as lubricating oil and edible oil. 2. This model is equipped with a touch screen, which can be linked with a frequency conversion speed control conveyor belt, an automatic induction type capping machine, and a vacuum drip-proof device. 3. The high-strength stainless steel frame is adopted, which is easy to disassemble and assemble, easy to clean, and meets GMP requirements 4. The man-machine interface can directly set the filling volume, and the filling volume and filling speed are easy to adjust, operated and displayed by the touch screen, and the appearance is beautiful; 5. PLC program control, frequency converter speed regulation linear filling; 6. High-precision liquid pump, accurate and reliable quantitative; 7. Mechanical seal and automatic suction double anti-drip; 8. High-efficiency filling with double flow rate at first fast and slow later. Note: The filling range and speed can be designed with different filling heads according to user requirements.

Model	4 heads liquid filling machine
Voltage	AC220 50/60HZ
Air pressure	0.4-1mpa
Filling speed	1800BPH
Filling precision	≤±1%
Material	SUS304
Filling range options	100-5000ml
Air consumption	＜0.2m³/second
Size:	11105801650mm

Semi automatic 12 head Bottle wine whisky filling machine

1. This machine is suitable kinds of bottles filling (including special shapes of bottles), especially for the bottles with different heights. 2. This machine is suitable for kinds of wine, drinks, soy sauce and liquid etc without carbon dioxide ingredient. 3. Liquid touching part is made of stainless steel, which is healthier and corrosion resistance. 4. The adjusting scope of bottle specification is very wide, easy to adjust. 5. Different machine materials can be customized according to different liquids, such as chemistry and medicine. 6. Filling head can be customized for less than 12. Technical parameters: Model: GCP-12 Capacity: 1800-2400 bottles per hour Filling head: 12 pieces Filling precision: ±1% Suitable bottle height: 150-390mm Suitable bottle diameter: ≥12mm Filling scope: 200-1500ml/bottle Power: 0.55kw Dimension: 900*660*1630mm Weight: 260kg

Semi automatic 1/2 head pneumatic paste filling machine with mixing tank

This filling machine is used to filling food industry such as pearl milk tea, coco, edible oil, thick broad-bean sauce, and chili sauce, cosmetic industry, such as shampoo, cream, liquid soap and shower gel and so on. It can be used to filling both cream and liquid.

This series of paste filling machine apply to cosmetic, food, oil, medicine-pesticide and other industries. semi-liquid, viscous body, sauce, honey, jam, peanut butter, tomato paste, sesame paste, chili sauce hot pot bed charge and other different types of products. Characteristics: 1.The machine has simple and reasonable structure, high filling precision, it is easy to operate. 2.It is the ideal equipment to filling high viscosity fluid and cream. 3.The pneumatic parts adopt famous brand pneumatic elements. 4.The material of the machine which contact the liquid are all made of stainless steel. It meets the GMP standard. 5.It equipped with the regulating handle, which can adjust the filling speed freely, the filling precision is high. 6.The machine is drip-proof, avoid drawing, and equipped filling lifting device.

REMARK: The machine has round and square hopper, can be customized as customer’s requirements.

Semi automatic 1/2 head pneumatic liquid filling machine

The machine adopts pneumatic working principle, simple operation, high filling precision, is a certain concentration or certain size granular materials ideal filling equipment. The machine is equipped with foot switch, it can stop working at any time.

Pneumatic Liquid Filling Machine is used for filling liquid and fluid liquid products,such as water, oil, beverage, juice, drink etc, It is suitable for various packing such as bottle, jar, can, cup, bag, barrels and so on, widely applied to food, commodity, cosmetic, medicine, agriculture etc,it is an ideal quantitative liquid filling equipment for small and medium-sized enterprises. Feature • Easy to assemble and setting • Adopts AirTAC Pneumatic components from Taiwan, simple operation, high filling accuracy fewer than 1%; • The machine BODY is made of STAINLESS STEEL • Stainless steel valve system design; • Piston type filling, can be operated by PEDAL SWITCH or by automatic timer. • Filling volume, filling speed is ADJUSTABLE. • Extremely easy to clean and maintain; • One head with one cylinders, filling head optional single head, two heads; • Conform to GMP;

Model	Single head liquid filling machine	Double heads liquid filling machine	Single head paste filling machine	Double heads paste filling machine
Voltage	AC220/110V 50/60HZ
Power	20W	50W	20W	50W
Air pressure	0.4-0.6mpa
Filling speed	5-25BPM	10-50BPM	5-25BPM	10-50BPM
Filling precision	≤±1%
Material	SUS304
Filling range options	3-30ml; 10-100ml; 30-300ml; 50-500ml; 100-1000ml; 500-3000ml; 1000-5000ml
Air consumption	≥0.008m³/second

1 2 4 head Table Top Electric Digital Control Liquid Filling Machine

Designed for filling low viscous liquid without particle like water, milk, torner etc.There are 6 filling level can be chosen.It is easy to operate and with small machine body,can help you save working space.This numerical control liquid filling machine is compact and portable. The casing uses stainless steel so it is durable and easy to clean. Note: this filling machine is pure liquid filling machine, can not fill corrosive chemical products, high concentration is not good. Future of small filling machine liquid: 1. Machine pump is made of corrosion-resistant imported material,pump body and motor is parted,pump inside no mechanical metal parts,non-wear high-precision technology. 2. Machine has self-absorption function,thermal protection ability,running smoothly and steadily. 3. High accuracy,within filling range,you can adjust filling volume by adjusting filling time. 4. Filling nozzle adopts drip-proof device. 5.Working performance is stable and can be used for long time 6.Self-suck function, don't need to pour 7.The pump can stand acid and alkali 8.Reasonable design, made of stainless steel, meet GMP requirement

Semi Automatic 4 6 8 Nozzle Heads Stand Up Pouch Filling Machine

This machine uses a new type of filling equipment that combines electrical work, automatic quantitative, automatic counting, and automatic plug-in filling. It is widely used in breakfast, soy milk, beverages, edible oil, wine, daily chemical, medicine and chemical products. The structure is simple and the operation is convenient. The four heads are filled at the same time, the effect is higher, and it can meet the unlimited quantity of more than 50-1000 (ml). (Arbitrarily adjusted filling capacity requirements, and not limited by the filling capacity, is a reliable and durable filling equipment). Parameters: Power supply: 220V / 50HZ or Customize Air pressure: 0.4-0.6MPA Environmental humidity: ≤85% Fluid viscosity: 0 ~ 3000CPS Electromechanical power: 150W Number of filling heads: 4 heads (3 heads, 6 heads, 8heads... can be customized ) Filling volume: 50ML-1000ML (large bags can be customized) Flow rate: 2.5L / head / minute (5L / 17L / head can be customized ) Dimensions: about 80 * 40 * 43cm (according to actual needs) Weight: about 30KG Working conditions: temperature does not exceed + 80 ℃ Operating environment temperature: -5 ~ 50 ℃ Optional hand-held capping machine can be matched to improve work efficiency.

In addition to filling machine, we can also provide the entire semi auto bottled water production line, Please check below:

Semi-auto bottle washer

Semi-auto capping machine

Semi-auto sealing machine

Semi-auto labeling machine

Semi-auto labeling machine

Handhold film shrink gun

company profile

ZhangJiaGang City BOTTLING MACHINERY Co.,Ltd. is located in Zhangjiagang city which is core of beverage machinery producer collection in China. Integrated the industry advantages and its own development in R&D, production, sales, after sales service,
BOTTLING MACHINERY is ready to serve more and more customers with our full range products and best service.BOTTLING MACHINERY is very critical in the choice of raw materials and spare parts. Korea 304 /316 stainless steel plate, ABB, SEW motors, Siemens, Mitsubishi, OMRON electrical control components, FESTO CAMOZZ the control valve, as well as international precision machining center for the fine quality of the machine foundation.

We are the supplier who can design and manufacture for all kinds beverage production plant (pure drinking water, mineral water,carbonated drinks, juice, tea and beer, etc.)

Customer's service:
1. ZhangJiaGang City BOTTLING MACHINERY Co.,Ltd. can provide turn-key project for you, we can design the beverage factory plan according to your idea.
2. BOTTLING MACHINERY company have professional design team, our engineers can draw bottle samples and flow chart of workshop for you .
3. BOTTLING MACHINERY company can give you the best quotation for all kinds of beverage production, as long as you tell us which kind of drink you want to produce, what is your capacity(how many bottles one hour) what is you bottle material, pet or glass bottle or can, etc.

After service:
1. We send our engineers to your factory to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the goods shipping to you:
a. Machines layout drawing.
b. Electricity diagram.
c. Machine certificate.
d. General manual book/maintenance book.
3. After one year guarantee, the seller provides payable spare parts and technician's VISITING maintenance service.

Packing&Delivery of BOTTLING

1. Our machines are packed by wooden case. 2. The delivery date of this machine is within 10-25 days after payment.

FAQ

Q:Are you a manufacturer or trade company? A:We are a manufacturer in beverage bottling machine field more than 10 years, located at Leyu town, ZhangJiaGang, 2 hours from Shanghai, We will pick you up from Shanghai Pudong Airport to visit our factory. Q:Do you have any certification? A:SGS,ISO,CE etc Q:What about the delivery time? A:Usually 20-30 Working days for most kinds of machines Q:What about the machine’s capacity? A:1000 - 20000 bottles per hour based on 500ml bottle. Q:The after-sale service A:12 months warranty.

We can solve basic questions by telephone, email and video call. Engineer will go to buyer's factory to install, test machines, and train buyer's staff how to operate, maintain machines. Operating manuals will be sent with machines or by email. We also have overseas service center Q:If our bottle size changes, can we just do some adjustment on machine according to our new bottle? A:Yes. Maybe you just need some spare little parts to change. Q: If I want to purchase the machine, what information do I need to tell you? A:a. What kind beverage you want to produce? b. bottle volume? 250ml, 330ml, 500ml, 750ml, etc.? c. Producing capacity requirement? How many bottles per hour? d.Raw water analysis report . e.Voltage and altitude. Q:What kinds of product you supply? A: Drink water/juice/carbonated drink filling line for bottle or can. 5 gallon/20L bottle water filling line. Water treatment system. Bottle blowing molding machine.

After packing system(label machine, PE film shrink packing machine, carton machine)

Sachet water packing line
